Product ID: 1037717483
Category:

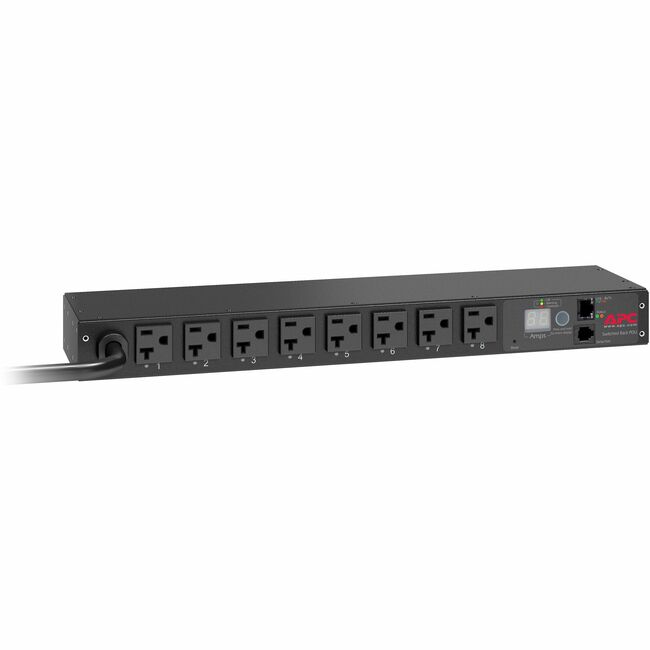

APC Rack PDU, Switched, 1U, 20A, 120V, (8)5-20
Description:
General Information
Manufacturer: Schneider Electric SA
Manufacturer Part Number: AP7901B
Brand Name: APC
Product Name: Rack PDU, Switched, 1U, 20A, 120V, (8)5-20
Marketing Information:
It is a switched rack PDU with a maximum current capacity of 20A and an input voltage of 120V. It features 8 NEMA 5-20R outlets and a NEMA L5-20P input connection. The PDU has a 1U form factor and a cord length of 12 feet. It supports remote monitoring and user-defined alarms, with outlet-level on/off switching capabilities. The unit is UL Listed and CSA certified, ensuring high safety and performance standards.
More from the Manufacturer
Product Type: PDU
Technical Information
PDU Type: Switched
Plug/Connector Type: NEMA L5-20P
Plug/Connector Detail: 1 x NEMA L5-20P
Receptacle Type: NEMA 5-20R
Receptacle Detail: 8 x NEMA 5-20R
Power Description
Input Voltage: 100 V120 VOutput Voltage: 120 V AC
Power Rating (VA): 2.40 kVA
Input Current: 20 A
Interfaces/Ports
Network (RJ-45): Yes
Physical Characteristics
Mounting Orientation: Horizontal
Mount Type: Rack-mountable
Placement: FrontRearRack Height: 1U
Cord Length: 12 ft (3.65 m)
Height: 1.73" (44 mm)
Width: 17.52" (445 mm)
Depth: 4.25" (108 mm)
Weight (Approximate): 5 lb (2267.96 g)
Miscellaneous
Package Contents: Rack PDU, Switched, 1U, 20A, 120V, (8)5-20 Cord retention bracket(s)Horizontal mounting bracketsInstallation guideUser manual
Country of Origin: India
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging: No
Warranty
Limited Warranty: 2 Year
Rich Marketing "
0 items
):
$1,158.95
