Product ID: 1037619208
Category:

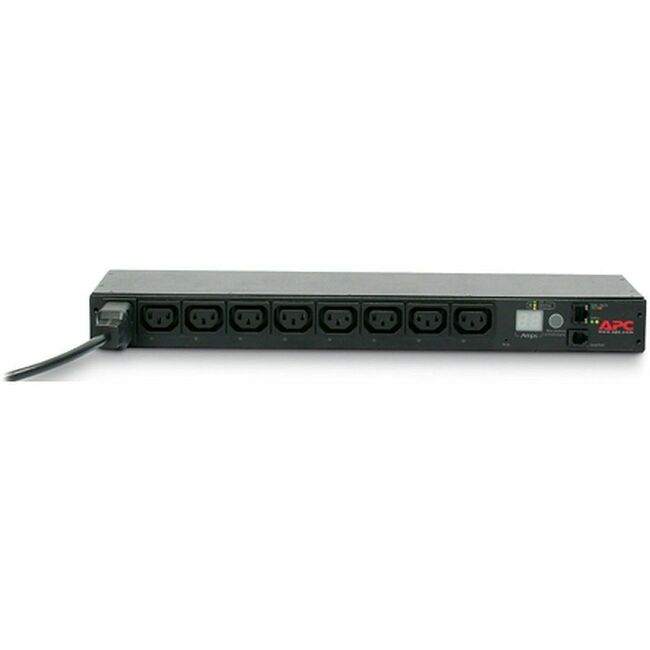

APC Rack PDU, Switched, 1U, 16A, 208/230V, (8)C13
Description:
General Information
Manufacturer: Schneider Electric SA
Manufacturer Part Number: AP7921B
Brand Name: APC by Schneider Electric
Product Name: Rack PDU, Switched, 1U, 16A, 208/230V, (8)C13
Marketing Information:
APC Switched Rack PDUs offer remote control of your PDUs while actively measuring, displaying, and logging amps for better load balancing. This switch rack pdu is ideal for remote monitoring, reboots, powerup sequencing, and scheduling power loads. Active metering and user-defined alarms help plan capacity and prevent circuit overloads that can cause accidental power loss to critical equipment. It can operate at up to 60 degrees Celsius, and the 0U footprint frees up valuable Uspace. Power is supplied to the PDU at 200-230 volts via IEC 320 C20 plug with a 2.5m (8.2 ft) cord while power comes out at 208-230 volts through (8) C13 outlets. It integrates with EcoStruxure IT through NMC3 and can be accessed, configured, and managed remotely via Web, SNMP and Command Line Interface. This unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.
More from the Manufacturer
Product Type: PDU
Technical Information
PDU Type: Switched
Plug/Connector Type: IEC 60320 C20
Power Description
Input Voltage: 200 V208 V230 VOutput Voltage: 208 V AC230 V ACInput Current: 20 A
Physical Characteristics
Mounting Orientation: Horizontal
Mount Type: Rack-mountable
Placement: FrontRearRack Height: 1U
Cord Length: 8.2 ft (2.49 m)
Height: 1.73" (44 mm)
Width: 17.52" (445 mm)
Depth: 4.25" (108 mm)
Weight (Approximate): 5 lb (2267.96 g)
Miscellaneous
Package Contents: Rack PDU, Switched, 1U, 16A, 208/230V, (8)C13 Installation guideRack mounting bracketsUser manual
Country of Origin: India
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 2 Year
