Description:
General Information
Manufacturer: Schneider Electric SA
Manufacturer Part Number: AP6020A
Brand Name: APC by Schneider Electric
Product Line: NetShelter
Product Series: Basic
Product Model: AP6020A

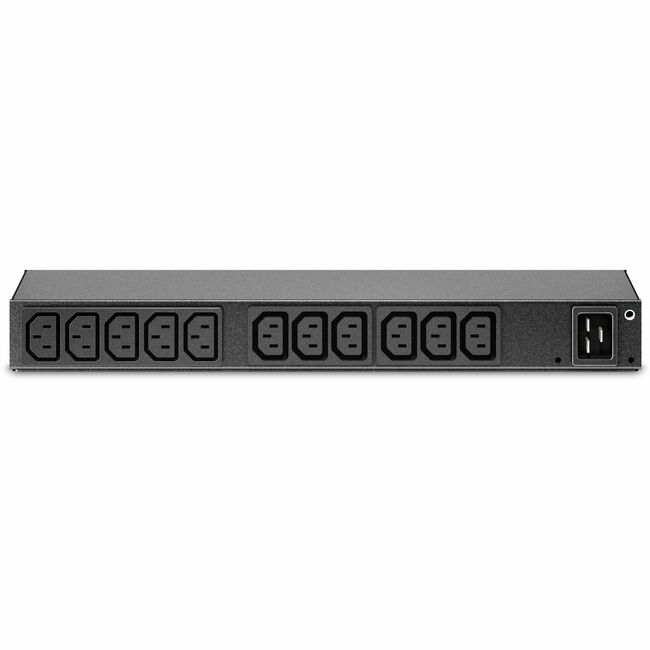

Product Name: Basic Rack PDU AP6020A
Marketing Information:
With over 700,000 units sold in the last 5 years alone, APC Basic Rack PDUs help IT pros supply reliable power to their servers and networks. This APC NetShelter Basic Rack PDU comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions. It provides (13) IEC 60320 C13 outlets to supply power to rack equipment. Acceptable input voltages are 100-240 volts, and power output is 200-240 volts. Power is supplied to the PDU through an IEC 320 C20 inlet (no cord provided). It occupies zero U of valuable rack space, which allows space for more equipment in the rack. Mounting is easy and does not require additional tools in APC NetShelter Enclosures and most third party racks.
Product Type: PDU
Technical Information
PDU Type: Basic
Plug/Connector Type: IEC 60320 C20
Power Description
Input Voltage: 100 V120 V200 V208 V230 V240 VOutput Voltage: 120 V AC230 V ACInput Current: 16 A
Physical Characteristics
Mounting Orientation: Horizontal
Mount Type: Rack-mountable
Form Factor: Tower
Placement: FrontRearRack Height: 1U
Height: 15.28" (388 mm)
Width: 1.73" (44 mm)
Depth: 3.66" (93 mm)
Weight (Approximate): 3.31 lb (1501.39 g)
Miscellaneous
Package Contents: Basic Rack PDU AP6020A Installation guideSafety guide
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 2 Year
