Description:
General Information
Manufacturer: Schneider Electric SA
Manufacturer Part Number: AP7532
Brand Name: APC by Schneider Electric
Product Line: Basic Rack

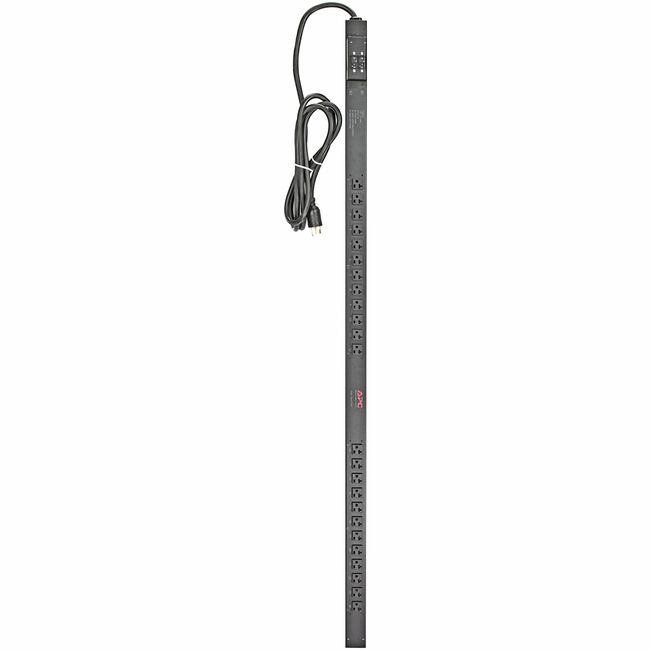

Product Name: Basic Rack 2880VA PDU
Marketing Information:
It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 30A and operates at 120V. The PDU features 24 NEMA 5-20R outlets, providing ample connections for IT equipment. It includes a 10-foot power cord with a NEMA L5-30P plug. The unit is designed for reliable power distribution and includes an installation guide, rack mounting brackets, and a toolless mounting kit.
Packaged Quantity: 1 Each
Product Type: PDU
Technical Information
PDU Type: Basic
Plug/Connector Type: NEMA L5-30P
Receptacle Type: NEMA 5-20R
Receptacle Detail: 24 x NEMA 5-20R
Power Description
Input Voltage: 100 V120 VOutput Voltage: 120 V AC
Power Rating (VA): 2.88 kVA
Physical Characteristics
Color Family: Black
Product Color: Black
Mounting Orientation: Vertical
Mount Type: Rack-mountable
Placement: Side
Rack Height: 0U
Cord Length: 9.8 ft (3 m)
Height: 63.74" (1619 mm)
Width: 2.20" (56 mm)
Depth: 1.73" (44 mm)
Weight (Approximate): 12.28 lb (5570.11 g)
Miscellaneous
Package Contents: Basic Rack 2880VA PDU Installation guideRack mounting bracketsToolless mounting kit
Country of Origin: India
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 2 Year
