Description:
General Information
Manufacturer: Eaton Corporation
Manufacturer Part Number: P13706NVGAV2
Brand Name: Tripp Lite series
Product Model: P137-06N-VGA-V2

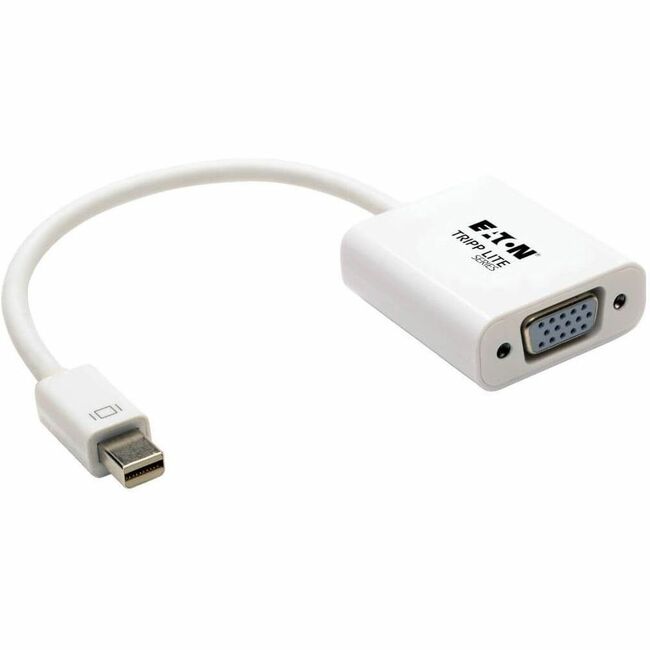

Product Name: Mini Displayport 1.2 to VGA M/F
Marketing Information: Tripp Lite's P137-06N-VGA-V2 Mini-DisplayPort v1.2 to VGA Active Adapter Converter allows you to connect a computer with a Mini-DisplayPort or Thunderbolt™ connection to a VGA monitor. Ideal for Thunderbolt™ /Mini DisplayPort equipped laptops, Chromebooks, MacBooks and Microsoft Surface. Mac 10.11, Windows 10 Compatible. DisplayPort v1.2 doubles the previous version bandwidth of 8.64 Gbps to 17.28 Gbps in High Bit Rate (HBR2) mode, which allows increased resolutions, higher refresh rates, and greater color depth. Supports VGA computer video resolutions up to 1920 x 1200 and HD resolutions up to 1080p. Unlike passive adapters, Active adapters convert both Single-Mode and Dual Mode (DP++) DisplayPort output. It is ideal for use with graphics cards, such as AMD Eyefinity, that do not output Dual Mode (DP++) signals.
More from the Manufacturer
Product Type: A/V Cable
Technical Information
Cable Type: DisplayPort/VGA
Cable Length: 6" (152.40 mm)
Connector Type on First End: Mini DisplayPort 1.2 Digital Audio/Video - Male
Connector on First End Details: 1 x Mini DisplayPort 1.2 Digital Audio/Video - Male
Connector Type on Second End: HD-15 - Female
Connector on Second End Details: 1 x 15-pin HD-15 - Female
Device Supported: MonitorComputerData Transfer Rate: 17.3 Gbit/s
Supported Resolution: 1920 x 1080
Physical Characteristics
Color Family: Black
Product Color: Black
Miscellaneous
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
Warranty
Limited Warranty: 3 Year
