General Information

---

Manufacturer: Legrand Group
Manufacturer Part Number: LTA1U
Brand Name: Chief
Product Line: Fusion Wall Tilt
Product Model: LTA1U

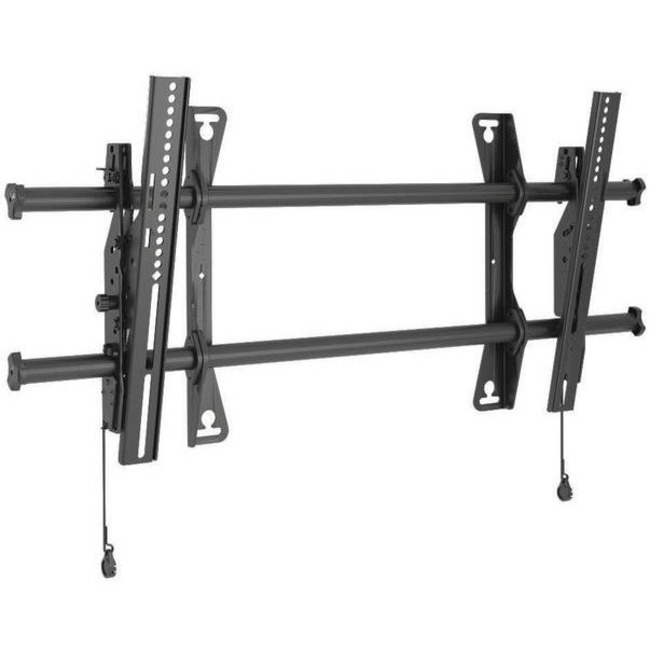

Product Name: Large Fusion Tilt Wall Mount
Marketing Information: The Chief Fusion tilt display wall mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution and includes new benefits of added stability, faster install, improved lateral shift, easier cable management and enhanced security.



The integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall and Control Zone Leveling for post-installation fine tuning of height and leveling.



Feel confident in your installation with Chief's ClickConnect technology that offers an audible click when the screen safely engages with the mount and set screws to keep the mount rigid, stable and secure throughout the life of installation.



Built in cable stand provides easy access under the screen.

More from the Manufacturer

Product Type: Wall Mount

Product Information

---

Device Supported: TV
Number of Displays Supported: 1
Maximum Load Capacity: 200 lb (90718.47 g)
Minimum Screen Size Supported: 42"
Maximum Screen Size Supported: 86"
Features:

Lateral Adjustment

Cable Management

Physical Characteristics

---

Color Family: Black
Product Color: Black
Mounting Pattern:

100 x 100

879 x 500

Height: 16.50" (419.10 mm)
Width: 34.75" (882.65 mm)
Depth: 2" (50.80 mm)

Miscellaneous

---

Package Contents:

• Large Fusion Tilt Wall Mount
• Hardware Kit

Country of Origin: China

Warranty

---

Limited Warranty: 10 Year
