General Information

---

Manufacturer: Schneider Electric SA
Manufacturer Part Number: SMX2200HV
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS
Product Series: SMX

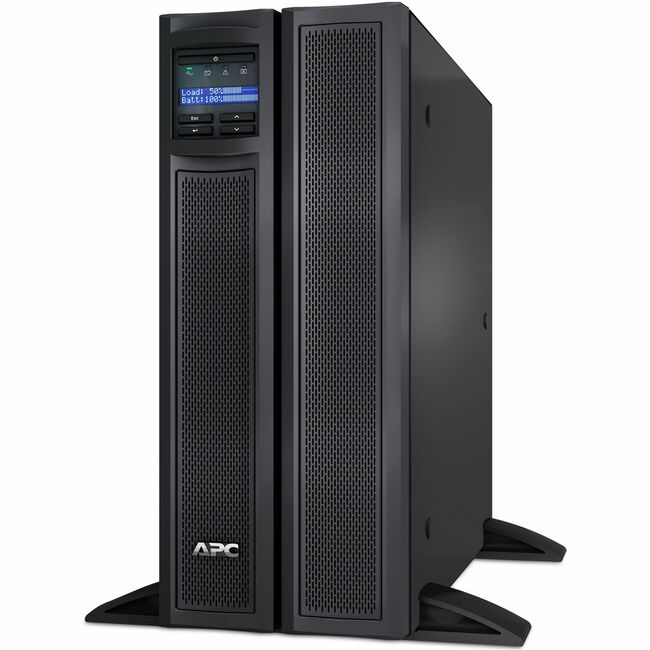

Product Name: Smart-UPS X 2200VA Rack/Tower LCD 200-240V
Marketing Information: This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2200VA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

More from the Manufacturer

Product Type: Line-interactive UPS

Technical Information

---

Plug/Connector Type:

British BS1363A

IEC 320-C20

Receptacle Type: Schuko CEE 7/EU1-16P
Receptacle Detail:

2 x IEC 320-C19

2 x IEC Jumper

8 x IEC 320-C13

Number of Battery & Surge Outlets: 12
Cord Length: 6.6 ft (2 m)

Power Description

---

Load Capacity (VA): 2.20 kVA
Load Capacity (Watt): 1.98 kW
Input Voltage:

208 V

230 V

Output Voltage:

208 V AC

230 V AC

Waveform Type: Sine Wave
Surge Energy Rating: 645 J

Management

---

Alarm:

Low Battery

Configurable Delay

On Battery

Interfaces/Ports

---

USB: Yes

Battery Information

---

Battery Characteristics: Spill-proof, Maintenance-free
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 10 Minute
Backup/Run Time (Half Load): 25 Minute
Typical Battery Recharge Time: 3 Hour

Environmental Conditions

---

Sound Emission (A-Weighted): 55 dB(A)
Thermal Dissipation: 150 BTU/h

Physical Characteristics

---

Product Color: Black
Height: 17.01" (432 mm)
Width: 7.01" (178 mm)
Depth: 19.02" (483 mm)
Rack Height: 4U
Form Factor: Rack-mountable
Weight (Approximate): 85.01 lb (38559.89 g)

Miscellaneous

---

Package Contents:

Smart-UPS X 2200VA Rack/Tower LCD 200-240V

CD with software

Documentation CD

Rack mounting support rails

Smart UPS signalling RS-232 cable

USB cable

User manual

Software Included: Powerchute Serial Edition
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty: 3 Year
Additional Warranty Information: 3 years repair or replace (excluding battery) and 2 years for battery
