Description:
General Information
Manufacturer: Schneider Electric SA
Manufacturer Part Number: SUA500PDR-H
Brand Name: APC by Schneider Electric

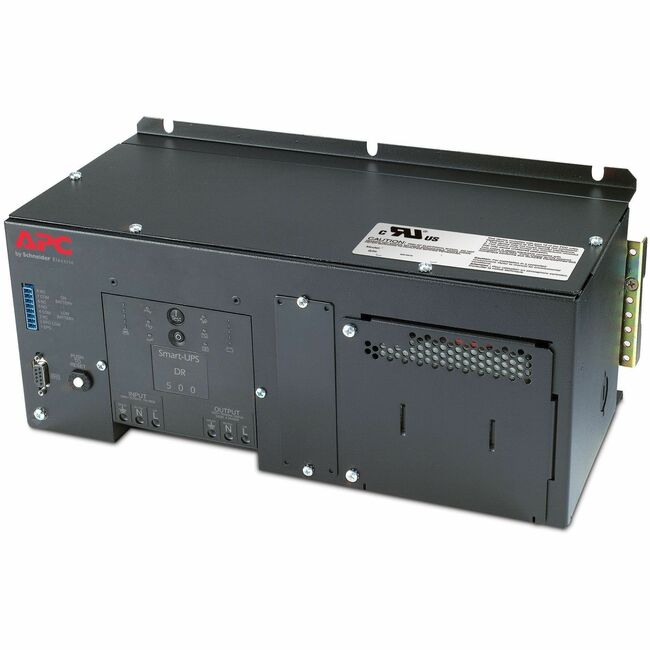

Product Name: 500VA Panel Mount UPS
Marketing Information:
The APC DIN Rail Panel Mount UPS with a high-temperature battery has a power rating of 500VA and 325 watts. It operates at a nominal voltage of 120V and includes a hard wire 3-wire output connection. The UPS is designed for high-temperature environments and uses a lead-acid battery.
More from the Manufacturer
Product Type: Line-interactive UPS
Technical Information
Plug/Connector Type: Hard Wire 3 wire (1PH+N+G)
Receptacle Type: Hard Wire 3-wire (H N + G)
Receptacle Detail: 1 x Hard Wire 3-wire (H N + E)
Number of Battery & Surge Outlets: 1
Transfer Time: 0 ns
Application/Usage: IndustryTransportationMission Critical EquipmentPharmaceuticalChemicalAutomotivePower Description
Load Capacity (VA): 500 VA
Load Capacity (Watt): 325 W
Input Voltage: 120 V
Input Voltage Range: 82 V AC - 144 V AC
Output Voltage: 120 V AC
Input Frequency: 60 Hz
Waveform Type: Sine Wave
Surge Energy Rating: 540 J
Management
Network Management: DB9 RS-232/SmartSlot
Alarm: On BatteryLow BatteryOverloadConfigurable DelayControls/Indicators
Status Indicators:
LED Status Display: - On Line
- On Battery
- Replace Battery
- Overload
Interfaces/Ports
Serial Port: Yes
EPO Port: Yes
Battery Information
Number of Batteries: 1
Battery Characteristics: Maintenance-free, Sealed, Leak-proof
Battery Chemistry: Lead Acid
Battery Energy: 432 kJ
Backup/Run Time (Full Load): 8.10 Minute
Backup/Run Time (Half Load): 24.40 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 2 Hour
Replaceable Battery: Yes
Environmental Conditions
Maximum Operating Elevation: 9842.52 ft (3000000 mm)
Maximum Storage Elevation: 49212.60 ft (15000000 mm)
Storage Temperature: 23°F (-5°C) - 131°F (55°C)
Storage Relative Humidity: 0% - 95%
Maximum Operating Temperature: 122°F (50°C)
Sound Emission (A-Weighted): 55 dB(A)
Thermal Dissipation: 90 BTU/h
Physical Characteristics
Height: 5.83" (148 mm)
Width: 14.25" (362 mm)
Depth: 6.73" (171 mm)
Form Factor: Tower
Weight (Approximate): 25.31 lb (11480.42 g)
Miscellaneous
Package Contents: 500VA Panel Mount UPS CD with softwareDocumentation CDInstallation guideSmart UPS signalling RS-232 cable
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 2 Year
