Description:
General Information
Manufacturer: Kramer Electronics LTD
Manufacturer Part Number: TP-580R
Brand Name: Kramer

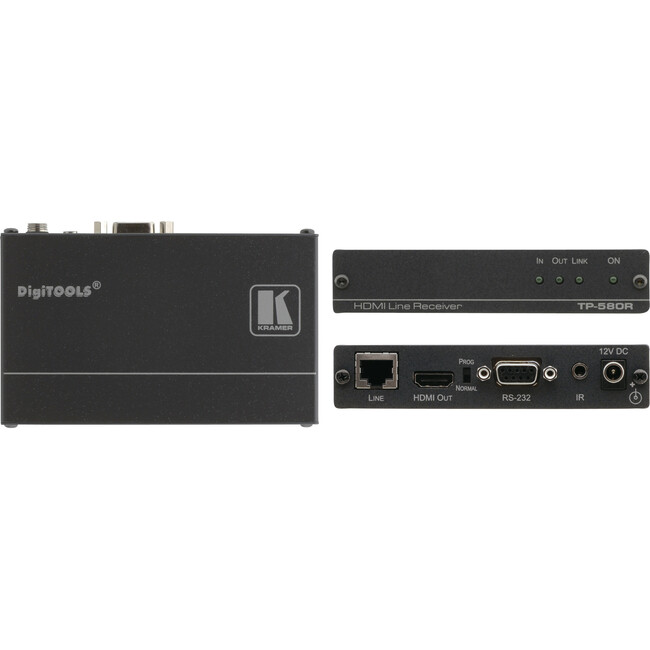

Product Name: HDMI, Bidirectional RS?232 & IR over HDBaseT Twisted Pair Receiver
Marketing Information:
The TP-580R is a high-performance, HDBaseT twisted pair receiver for HDMI, bidirectional RS-232 and IR signals. The TP-580R receives an HDBaseT twisted pair signal from the TP-580T and converts it back into HDMI, RS-232 and IR signals.
Product Type: Video Extender Receiver
Technical Information
Connectivity Technology: Wired
Number of Output Devices Supported: 1
Maximum Operating Distance: 229.66 ft (70000 mm)
Video
Maximum Video Resolution: 4096 x 2160
Interfaces/Ports
Network (RJ-45): Yes
HDMI Out: Yes
Number of Network (RJ-45) Ports: 1
Number of HDMI Outputs: 1
Media & Performance
Media Type Supported: Twisted Pair
Physical Characteristics
Receiver Height: 1" (25.40 mm)
Receiver Width: 7.40" (187.96 mm)
Receiver Depth: 4.50" (114.30 mm)
Receiver Weight (Approximate): 600 g
Miscellaneous
Package Contents:
- HDMI, Bidirectional RS-232 & IR over HDBaseT Twisted Pair Receiver
- Power Supply
0 items
):
$312.95
