Description:
General Information
Manufacturer: Schneider Electric SA
Manufacturer Part Number: AP8841
Brand Name: APC by Schneider Electric
Product Line: Metered Rack
Product Model: AP8841

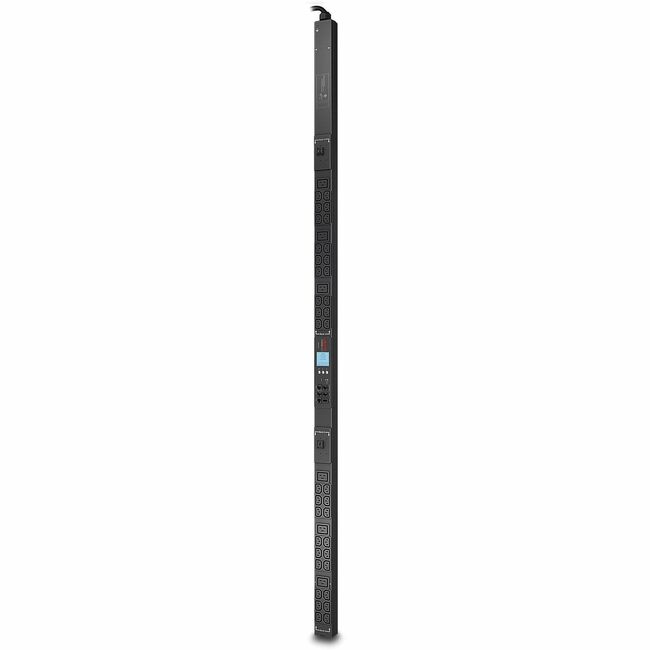

Product Name: Metered Rack AP8841 42-Outlets PDU
Marketing Information: The APC Metered Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The AP8841 offers real-time remote monitoring of connected loads and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxure IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface. User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access. Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity The PDU's locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH) The rack PDU comes with a standard two-year warranty Enables a quick recovery from overload events and breakers are ultra low profile. Packaging Includes PDU, Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable
More from the Manufacturer
Product Type: PDU
Technical Information
PDU Type: Metered
Plug/Connector Type: NEMA L6-30P
Protection Type: Overload Protection
Power Description
Input Voltage: 200 V208 VOutput Voltage: 200 V AC208 V ACManagement
Management:
Protocols:
Physical Characteristics
Mounting Orientation: Vertical
Mount Type: Rack-mountable
Placement: Side
Rack Height: 0U
Cord Length: 9.8 ft (3 m)
Height: 70.51" (1791 mm)
Width: 2.20" (56 mm)
Depth: 1.73" (44 mm)
Weight (Approximate): 15.08 lb (6840.17 g)
Miscellaneous
Package Contents: Metered Rack AP8841 42-Outlets PDU Installation guideRack mounting bracketsSafety guideSerial configuration cable
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 2 Year
Additional Warranty Information: 2 years repair or replace
