Description:
General Information
Manufacturer: MSI
Manufacturer Part Number: MAGB850MMORTARWIFI
Brand Name: MSI
Product Line: MAG
Product Model: B850M MORTAR WIFI

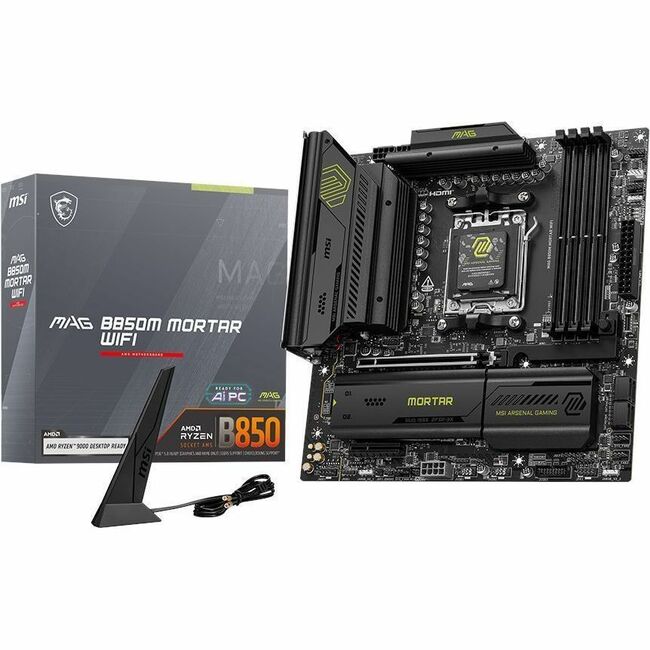

Product Name: MAG B850M MORTAR WIFI Gaming Desktop Motherboard
Marketing Information:
MAG B850M MORTAR WIFI
MAG B850M MORTAR WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 20Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen 9000 series processors.
MAG | MSI ARSENAL GAMING
MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
EZ M.2 INSTALLATION
MSI's exclusive EZ M.2 Shield Frozr II and EZ M.2 CLIP II make M.2 installation seamless. Insert the SSD card into the slot and press it down to lock it in place with the clip. As fasten the SSD, flick the clip outwards and then the SSD is removed. The process is smooth, and you don't need to use your tools like before. One finger can give you perfect DIY experience.
Product Type: Gaming Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: AMD
Chipset Model: B850
Processor Socket: Socket AM5
Processor Supported: Ryzen 7Ryzen 9Memory
Number of Memory Slots: 4
Memory Form Factor: DIMMUDIMMMaximum Memory Supported: 256 GB
Memory Speed Supported: 8200 MHz6400 MHz5600 MHz4800 MHzMemory Technology: DDR5 SDRAM
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 01510Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.4
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax/be
I/O Expansions
Total Number of Expansion Slots: 2
Total Number of PCI Express Slots: 2
Number of PCI Express x4 Slots: 1
Number of PCI Express x16 Slots: 1
PCI Express Standard: PCI Express 4.0PCI Express 5.0Interfaces/Ports
Total Number of USB Ports: 9
S/PDIF: Yes
HDMI: Yes
Number of Network (RJ-45) Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 3
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
Form Factor: Micro ATX
Width: 9.60" (243.84 mm)
Depth: 9.60" (243.84 mm)
Miscellaneous
Package Contents:
- MAG B850M MORTAR WIFI Gaming Desktop Motherboard
- Quick Installation Guide
- European Union Regulatory Notice
- 1 x SATA Cable
- 2 x EZ M.2 Clips II
- 1 x M.2 Screw
- EZ M.2 Clip II Remover
- Cable Sticker
- EZ Wi-Fi Antenna
- 1 to 2 EZ Conn-Cable (V1)
- EZ Front Panel Cable
Warranty
Limited Warranty: 3 Year
