Product ID: 1084142811
Category:

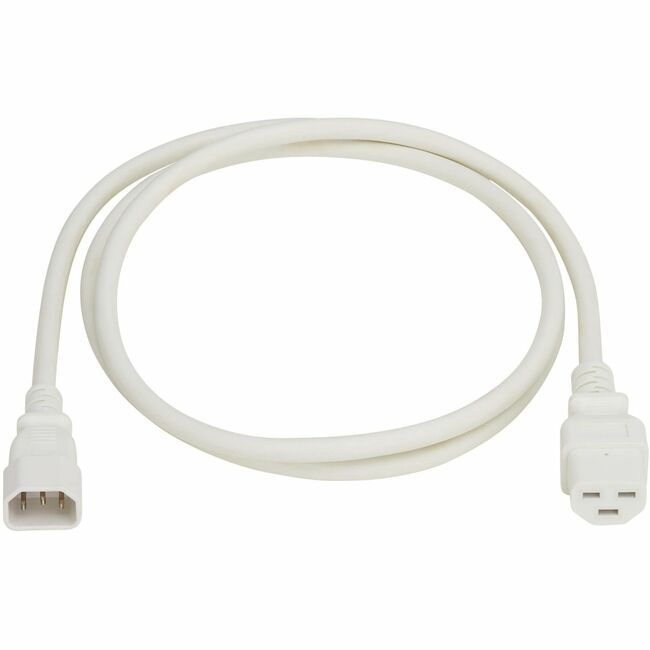

Tripp Lite series Power Cord, C14 to C21 - Heavy-Duty, 15A, 250V, 14 AWG, 5 ft. (1.5 m), White
Description:
General Information
Manufacturer: Eaton Corporation
Manufacturer Part Number: P037-005-AWH
Brand Name: Tripp Lite series
Product Model: P037-005-AWH
Product Name: Power Cord, C14 to C21 - Heavy-Duty, 15A, 250V, 14 AWG, 5 ft. (1.5 m), White
Marketing Information:
Features | 15A C14-to-C21 Power Cable for Network Devices That Require a Heavy-Gauge Connection
This heavy-duty cord features 14 AWG wire suitable for high power connections, making it a reliable solution for large server applications that require a higher-rated, heavier-gauge cable, including AI/machine-learning data centers. The five-foot (1.5-meter) length helps reduce cable clutter by providing a tailor-made fit between the device and the PDU or UPS in a crowded rack enclosure.
Recommended for High-Temperature Environments
The P037-005-AWH can be used to connect a blade server, large router or network switch with a C22 inlet, usually found on high-powered, high-temperature (overall operating temperature maximum 105°C/221°F) equipment, to a PDU or UPS system. It's an ideal upgrade to a power cord with improved temperature threshold for data center applications in which temperature control and fire safety are high priorities.
White Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The UL-listed cable has a white PVC jacket with fully molded white ends, which is easy to identify quickly in a crowded PDU or UPS system and helps prevent the cable from becoming accidentally disconnected.
Product Type: Standard Power Cord
Technical Information
First End Connector Type: IEC 60320 C14
First End Connector Detail: 1 x 3-pin IEC 60320 C14 Male
Second End Connector Type: IEC 60320 C21
Second End Connector Detail: 1 x 3-pin IEC 60320 C21 Female
Device Supported: ComputerServerUPSPDUSwitchRackNetwork DeviceBlade ServerRouterNetwork SwitchLocalization: North America
Number of Conductors: 3
Features: Heavy DutyHigh Temperature RatingPower Description
Voltage Rating: 250 V AC
Current Rating: 15 A
Physical Characteristics
Cord Length: 5 ft (1.52 m)
Color Family: White
Product Color: White
Jacket Material: Polyvinyl Chloride (PVC)Service Junior Thermoplastic (SJT)Environmental Conditions
Minimum Storage Temperature: -4°F (-20°C)
Maximum Storage Temperature: 221°F (105°C)
Miscellaneous
Country of Origin: Vietnam
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty: Lifetime
