Description:
General Information
Manufacturer: ASUS Computer International
Manufacturer Part Number: ROGSTRIX B850-FGAMINGWIFI
Brand Name: Asus ROG
Product Line: Strix
Product Model: B850-F GAMING WIFI
Product Name: Strix B850-F GAMING WIFI Gaming Desktop Motherboard
Marketing Information:
ROG STRIX B850-F GAMING WIFI
AMD B850-F ATX motherboard with 16+2+2 power stages, DDR5 support with AEMP, WiFi 7 with ASUS WiFi Q-Antenna, four M.2 slots, PCIe®5.0 x16 SafeSlots with PCIe Slot Q-Release Slim, total support of 19 USB ports including USB 20Gbps Type-C®, ASUS AI Advisor, AI Networking II, and Aura Sync RGB lighting.
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM5 Socket: Ready for AMD Ryzen™ 9000, 8000 and 7000 Series Desktop Processors
- Intelligent Control: ASUS-exclusive AI Advisor, AI Networking II and AEMP to simplify setup and improve performance
- Robust Power Solution: 16+2+2 power solution rated for 80A per stage with dual ProCool power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
- Optimized Thermal Design: Massive heatsinks with integrated I/O cover, and high-conductivity thermal pad
- Latest M.2 Support: Two onboard PCIe®5.0 M.2 slots and two PCIe 4.0 M.2 slots, all with substantial cooling solutions
- Abundant Connectivity: One USB 20Gbps Type-C®front-panel connector, four USB 10Gbps port, PCIe 5.0 x16 SafeSlots, HDMI™ port
- High-Performance Networking: On-board WiFi 7 (802.11be) with Intel 2.5 Gb Ethernet
- DIY Friendly Design: PCIe Slot Q-Release Slim, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack™ button, Clear CMOS button, and pre-mounted I/O shield
- Immersive Audio: ROG SupremeFX ALC4080 codec with Savitech SV3H712 amplifier, along with Dolby Atmos®
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including three addressable Gen 2 headers
- Renowned Software: ASUS DriverHub, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60-day free trial), bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard
ASUS AI INTELLIGENCE | ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7.
Performance OVERCLOCKING | PBO ENHANCEMENT
AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.
Product Type: Gaming Desktop Motherboard
Technical Information
AI-powered: Yes
Processor & Chipset
Chipset Manufacturer: AMD
Chipset Model: B850
Total Processor Supported: 1
Processor Socket: Socket AM5
Processor Supported: Ryzen 7Ryzen 8Ryzen 9Memory
Number of Memory Slots: 4
Memory Form Factor: DIMMUDIMMMaximum Memory Supported: 192 GB
Memory Speed Supported: 8000 MHz
Memory Technology: DDR5 SDRAM
Error Checking: ECC
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 01510Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.4
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11be
I/O Expansions
Total Number of Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x16 Slots: 3
PCI Express Standard: PCI Express 4.0PCI Express 5.0Interfaces/Ports
Total Number of USB Ports: 12
S/PDIF: Yes
VGA: Yes
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Thunderbolt: Yes
Number of Thunderbolt 4 Ports: 2
Onboard Interfaces
Number of SATA Interfaces: 2
Number of M.2 Interfaces: 4
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
Form Factor: ATX
Width: 12.01" (305 mm)
Depth: 9.61" (244 mm)
Miscellaneous
Package Contents:

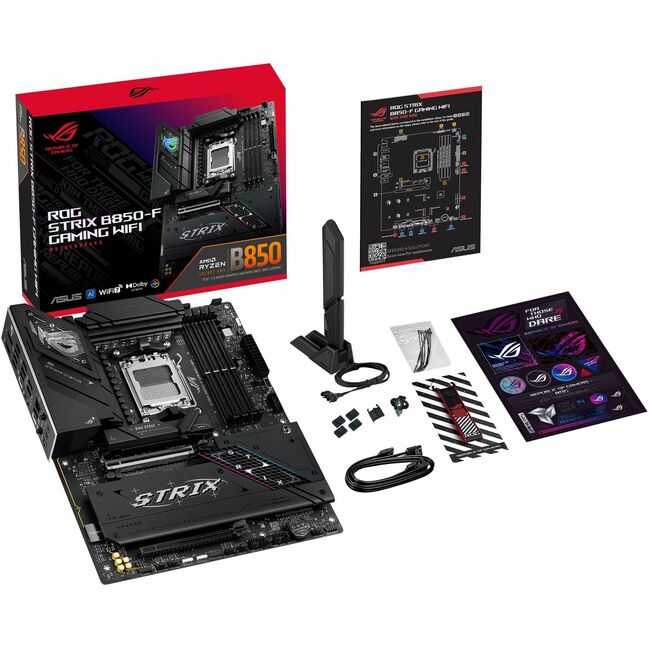

- Strix B850-F GAMING WIFI Gaming Desktop Motherboard
- 2 x SATA 6Gb/s cables
- 1 x ASUS WiFi Q-Antenna
- 1 x Cable ties package
- 1 x M.2 Q-Latch package
- 1 x M.2 Q-Slide package
- 1 x ROG key chain
- 1 x ROG Strix stickers
- 4 x M.2 rubbers
- 1 x Quick start guide
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)China Restriction of Hazardous Substances (China RoHS)Taiwan Restriction of Hazardous Substances (Taiwan RoHS)Waste Electrical and Electronic Equipment Directive (WEEE) Warranty
Limited Warranty: 3 Year
