Description:
General Information
Manufacturer: ASUS Computer International
Manufacturer Part Number: ROG STRIXZ890-EGAMINGWIFI
Brand Name: Asus ROG
Product Model: STRIX Z890-E GAMING WIFI

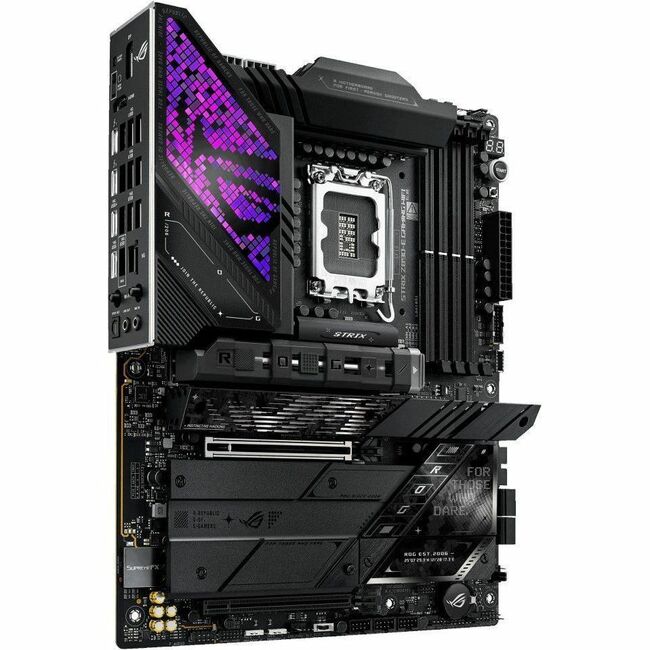

Product Name: STRIX Z890-E GAMING WIFI Gaming Desktop Motherboard
Marketing Information:
With an advanced power design and AI features, the ROG Strix Z890-E Gaming WiFi delivers top-tier performance. Equipped with Thunderbolt™ 4, WiFi 7, high-speed DDR5 slots, and seven M.2 slots, it provides exceptional connectivity and speed, making it ideal for elite gaming and advanced AI PC applications
ASUS AI ADVISOR
Using AI technology to understandnatural-languagequestions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
ai OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.
ai cOOLING II
Balance the thermals and acoustics of any build with a single click
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.
Product Type: Gaming Desktop Motherboard
Technical Information
AI-powered: Yes
Processor & Chipset
Chipset Manufacturer: Intel
Chipset Model: Z890
Total Processor Supported: 1
Processor Socket: Socket LGA-1851
Processor Supported: Core
Memory
Number of Memory Slots: 4
Memory Form Factor: DIMMUDIMMMaximum Memory Supported: 192 GB
Memory Technology: DDR5 SDRAM
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 01510Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.4
Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11be
I/O Expansions
Total Number of Expansion Slots: 2
Total Number of PCI Express Slots: 2
Number of PCI Express x16 Slots: 2
PCI Express Standard: PCI Express 5.0PCI Express 4.0Interfaces/Ports
Total Number of USB Ports: 14
S/PDIF: Yes
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Thunderbolt: Yes
Number of Thunderbolt 4 Ports: 2
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 7
Total Number of Onboard USB Ports: 11
Number of Onboard USB 2.0 Ports: 6
Physical Characteristics
Form Factor: ATX
Width: 12" (304.80 mm)
Depth: 9.60" (243.84 mm)
