Description:
General Information
Manufacturer: Elo Touch Solutions, Inc
Manufacturer Part Number: E968313
Brand Name: Elo
Product Series: 04LS
Product Model: 1504LS

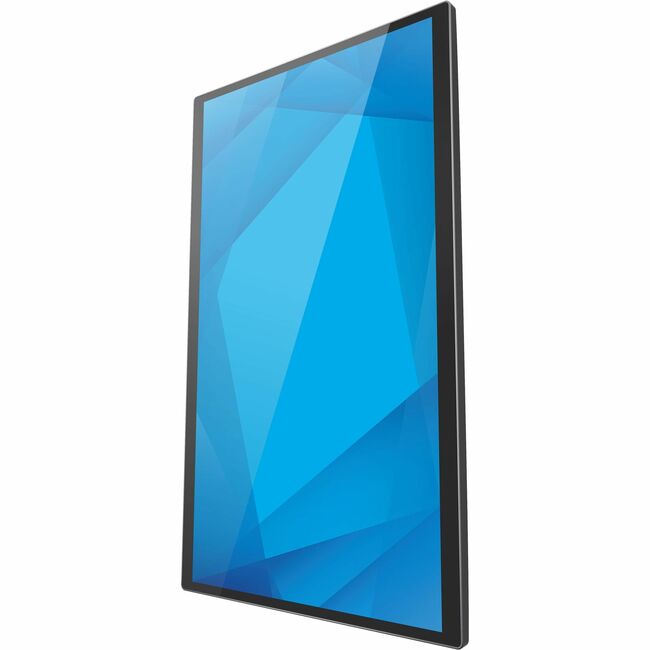

Product Name: 1504LS 15" Touchscreen Monitor
Marketing Information:
Razor thin design. Brilliant touchscreen.
Built to be one of the thinnest commercial-grade 15-inch touchscreen monitors, the 04LS-Series delivers a stunning design with thin borders, enhanced durability and state-of-the- art optical bonding - all with brilliant display clarity.
Secure your cables into place.
With a port cover that can be locked into place, cables are less prone to becoming disconnected, minimizing disruptions to the device.
A clean slate for touch experiences. The perfect pairing for your POS terminal.
Whether you want to pair the 1504LS with a PC, a mobile device or an AiO with integrated payment, the 04LS slate monitors offers the perfect compact touch display with the sleekness you desire at the point of sale.
Get peace of mind with EloCare.
From advance unit replacement to extended warranties, EloCare delivers service and support from the people who know your Elo products best.
Product Type: LED Touchscreen Monitor
Technical Information
Screen Size Class: 15"
Viewable Screen Size: 15.6"
Screen Mode: Full HD
Panel Technology: Thin Film Transistor (TFT)
Response Time: 20 ms
Aspect Ratio: 16:9
Horizontal Viewing Angle: 170°
Vertical Viewing Angle: 170°
Mount Type: Wall Mountable
Backlight Technology: LED
Features: On-screen Display (OSD)Color Temperature SelectionLow Blue LightAuto Power OffVertical Frequency: 60 Hz
Impact Protection (IK) Rating: IK07
Active Display Area (H x V): 13.55" (344.10 mm) x 7.62" (193.50 mm)
Video
Maximum Resolution: 1920 x 1080
Color Supported: 16.2 Million Colors
Native Contrast Ratio: 1,000:1
Brightness: 350 cd/m²
Audio
Speakers: Yes
Touchscreen Information
Touchscreen Type: Projected Capacitive
Multi-touch Screen: Yes
Number of Simultaneous Touchpoints: 10
Interfaces/Ports
USB: Yes
USB Type-C: Yes
Environmental Conditions
Operating Temperature Range: 32°F (0°C) to 104°F (40°C)
Operating Humidity Range: 20% to 80% (Non-condensing)
Physical Characteristics
Color Family: Gray
Product Color: Dark Gray Metallic
VESA Mount Compatible: Yes
VESA Mount Standard: 75 x 75
Height: 8.61" (218.82 mm)
Width: 14.16" (359.73 mm)
Depth: 0.59" (14.97 mm)
Weight (Approximate): 2.45 lb (1110 g)
Miscellaneous
Application/Usage: CommercialPoint of Sale (POS)
0 items
):
$745.95
