Product ID: 1082055483

Category:

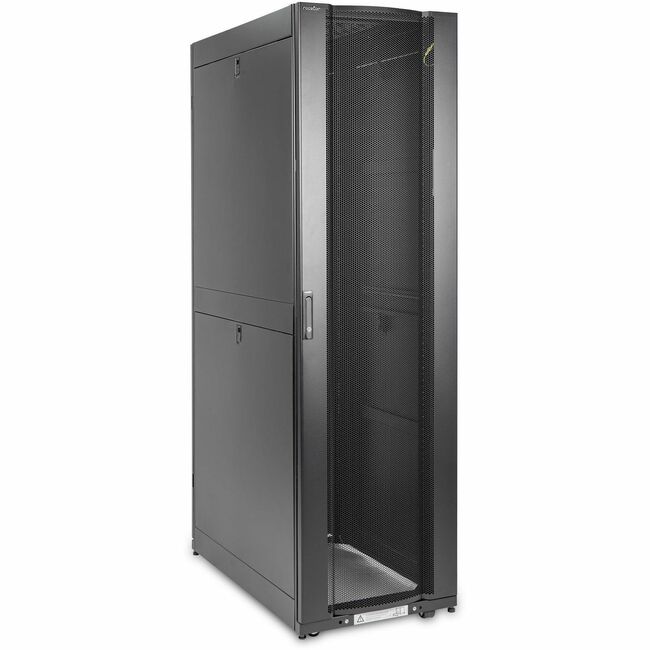

Rocstor SolidRack Rack Cabinet


Rocstor SolidRack Rack Cabinet

Price (CDN): $1,767.95

Product Availability: In Stock!

This item is in stock and will ship as soon as possible. Usually ships same day.

  • ATS LOWEST PRICE GUARANTEE
  • ATS SAFE SHOPPING GUARANTEE
  • FREE SHIPPING OVER $99.00

READY TO BUY?

Price (CDN) : $1,767.95

Quantity:




Description:
General Information
Manufacturer: Rocstor
Manufacturer Part Number: Y10E063-B1
Brand Name: Rocstor
Product Line: SolidRack
Product Name: SolidRack Rack Cabinet
Marketing Information:

The Rocstor SolidRack R3105 45U Rack Enclosure Cabinet is built for modern data centers, offering a robust static load capacity of 3300lbs (1500kg) or 2314lbs (1049kg) of rolling capacity. The R3105 ships fully assembled and includes doors and side panels. Made from durable cold-rolled steel (CRS), it features keyed door locks. With its extensive ventilation and cable management capabilities, it ensures optimal airflow and organization, making it perfect for hot-aisle/cold-aisle configurations. The SolidRack features front and rear pairs of vertical rails with square mounting holes, adjustable from 5.67 inches (144 mm) to 35.24 inches (894 mm) when the cable manager bar is not installed. With the cable manager bar in place, the adjustable range for the vertical rails is from 5.67 inches (144 mm) to 30 inches (762 mm). It also includes adjustable vertical mounting rails for easy installation of PDUs and cable managers.

Safety and convenience are key aspects of the SolidRack R3105. It has locking, reversible, and removable front and rear doors, along with removable side panels for maximum security and ease of maintenance. The split rear door design allows for closer placement to walls, saving space. The vented top panel and open bottom facilitate efficient cooling and cable access, while preinstalled casters and levelers ensure easy mobility and stable positioning.

Deploying the SolidRack R3105 is straightforward with its preinstalled casters and levelers. This rack enclosure is compatible with a wide range of accessories, allowing for customized solutions to meet specific needs. It comes with a Rocstor 5-year warranty and free technical support, providing peace of mind and reliable performance.


Product Type: Rack Cabinet
Technical Information
Rack Type: Enclosed Cabinet
Application/Usage:
  • Data Center
  • PDU
  • Patch Panel
  • LAN Switch
  • UPS
  • Server
  • Ventilation: Yes
    Features:
  • Casters
  • Heavy Duty
  • Robust
  • Lockable Door
  • Cable Management
  • Adjustable Mounting Rails
  • Lockable Front Door
  • Lockable Rear Door
  • Reversible Front Door
  • Reversible Rear Door
  • Removable Side Panel
  • Vented Top
  • Vented Bottom
  • Powder Coated
  • Removable Back Door
  • Removable Front Door
  • Lockable Side Panel
  • Leveling Feet
  • Key Lock
  • Physical Characteristics
    Form Factor: Floor Standing
    Color Family: Black
    Product Color: Black
    Product Material: Cold-rolled Steel (CRS)
    Dynamic/Rolling Weight Capacity: 2314 lb (1049612.74 g)
    Static/Stationary Weight Capacity: 3300 lb (1496854.82 g)
    Height: 83.66" (2124.96 mm)
    Width: 23.62" (599.95 mm)
    Depth: 42.13" (1070.10 mm)
    Rack Height: 45U
    Rack Depth: 42.10" (1069.34 mm)
    Weight (Approximate): 293.21 lb (132997.82 g)
    Miscellaneous
    Package Contents:
    • SolidRack Rack Cabinet
    • Doors
    • Side Panels

    Assembly Required: No
    Environmental Compliance: Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty: 5 Year
