Description:
General Information
Manufacturer: NetAlly
Manufacturer Part Number: LRAT-4000-KIT
Brand Name: NetAlly
Product Line: LinkRunner
Product Model: LRAT-4000-KIT
Product Name: LinkRunner AT 4000 Advanced Network & Cable Tester
Marketing Information:
Advanced Copper and Fiber Network Testing, Diagnostics, Discovery, and Mapping
- Provides deep visibility, diagnostics, and packet capture for network technicians and engineers to quickly resolve issues impacting single or multiple devices and network segments.
- Automatically discovers, inventories, and documents network infrastructure devices, endpoints, and connection paths across multiple VLANs and subnets; detects common problems and generates topology maps in Link-Live.
- Comprehensive AutoTest validates and troubleshoots all aspects of network connectivity and services.
- Verifies available link speed from 10Mbps to 10Gbps, tests PoE, identifies connected switch port and VLAN.
Overview
The LinkRunner AT 4000 is an advanced cable and network tester for Multigigabit NBASE-T and fiber Ethernet networks, including comprehensive network discovery and topology mapping with advanced diagnostics and problem detection for in-depth troubleshooting.
Using network discovery and layer 2 and 3 path analysis, the LinkRunner AT 4000 offers comprehensive network visibility to help resolve issues impacting multiple devices - not just a single link - while still providing the automated tests for moves/ adds/changes validation and troubleshooting that the LinkRunner AT family of test solutions is known for.
Test results can be automatically uploaded to the Link-Live collaboration, reporting, and analysis platform to improve teamwork between network engineers and technicians, creating greater job visibility, better project control, and improved tester fleet management. Independent management plane via wired or Wi-Fi connection (with optional adapters) allows remote operation and result uploading separate from the network under test.
More from the Manufacturer
Product Type: Cable/Network Tester
Technical Information
Device Function: Network TestingCable TestingPoE TestingFiber Optic Cable TestingLAN Cable TestingInterfaces/Ports
USB: Yes
Network (RJ-45): Yes
Number of USB Ports: 2
Number of Network (RJ-45) Ports: 2
Wireless Specifications
Wireless LAN: No
Media & Performance
Media Type Supported: Twisted PairOptical FiberNetwork & Communication
Network Standard: 1000Base-T1000Base-X1000Base-SX1000Base-LX1000Base-ZX100Base-FXEthernet Technology: Gigabit Ethernet
Display & Graphics
Display Screen Type: LCD
I/O Expansions
Total Number of Expansion Slots: 1
Expansion Slot Type: SFP
Number of SFP Slots: 1
Battery Information
Battery Size Supported: Proprietary Battery Size
Battery Rechargeable: Yes
Battery Life: 9 Hour
Battery Chemistry: Lithium Ion (Li-Ion)
Power Description
Input Voltage: 120 V AC230 V ACPhysical Characteristics
Height: 7.72" (196.09 mm)
Width: 4.02" (102.11 mm)
Depth: 1.65" (41.91 mm)
Weight (Approximate): 1.06 lb (480.81 g)
Miscellaneous

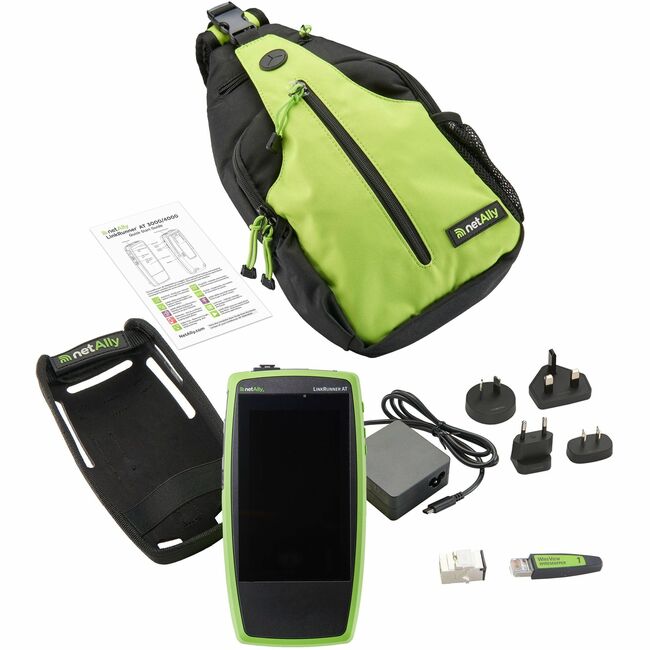

Package Contents:
- LinkRunner AT 4000 Tester with 1 Year of AllyCare Support (LRAT-4000-1YS)
- Power Supply with Regional Power Plugs
- WireView Cable ID #1-#6
- RJ-45 Coupler
- 850nm Multimode 1 Gbps SFP
- Holster
- Getting Started Guide
- Shoulder Sling Bag
