General Information

---

Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 40B90100US
Brand Name: Lenovo
Product Model: 40B9

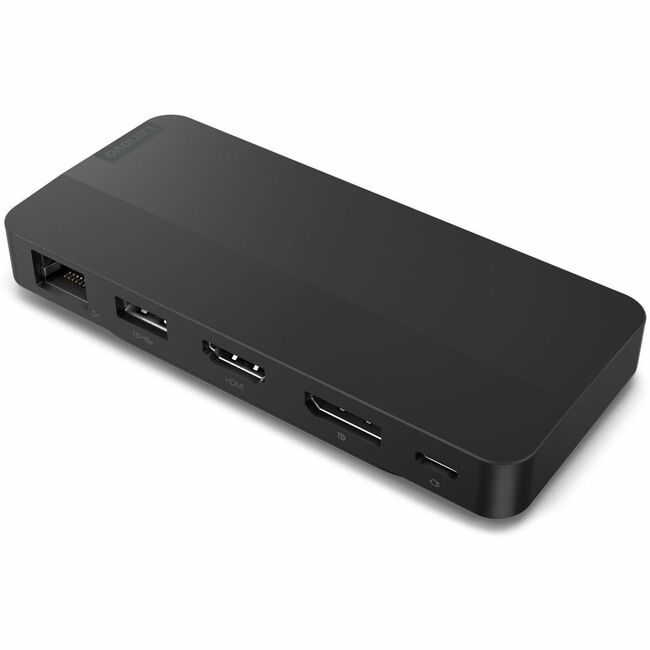

Product Name: USB-C Dual Display Travel Dock (w/ adapter)
Marketing Information: The Lenovo USB-C Dual Display Travel Dock is an essential companion for the modern remote professional. This compact dynamo supports dual 4K displays and powers your USB-C laptop with up to 100W PD (with an additional 135W USB-C adapter.) Crafted with 66% post-consumer recycled content in the chassis, it's designed to lighten your carbon footprint. And don't forget the adjustable cable management, balancing efficiency and convenience flawlessly. It's a true productivity booster at home, work, or anywhere in between. DISCLAIMER: Lenovo USB-C & Thunderbolt Docks are compatible with notebooks supporting industry-standard USB-C Alt-Mode or Thunderbolt protocols via their USB Type C port.
Product Type: Docking Station

Technical Information

---

Connectivity Technology: Wired
Charging Capability: Yes
Number of Displays Supported: 2
Supported Resolutions: 3840 x 2160
Screen Mode Supported: 4K @ 60Hz
Device Supported:

Monitor

Notebook

Network & Communication

---

Ethernet Technology: Gigabit Ethernet

Interfaces/Ports

---

Host Interface: USB Type C
Total Number of USB Ports: 3
Number of USB Type-C Ports: 2
USB Type-C: Yes
USB Type-C Detail: 2 x USB-C 10 Gbps (1 x AOU 12W Max)
Number of USB Type-A Ports: 1
USB Type-A: Yes
Number of RJ-45 Ports: 1
Network (RJ-45): Yes
Number of DisplayPorts: 1
DisplayPort: Yes
DisplayPort Version: 1.4
Number of HDMI Ports: 1
HDMI: Yes
USB Power Delivery: 100W

Software

---

Operating System Supported:

Windows 10

Windows 11

Power Description

---

Maximum Power Supply Wattage: 135 W

Physical Characteristics

---

Product Color: Eclipse Black
Height: 0.79" (20 mm)
Depth: 2.17" (55 mm)
Weight (Approximate): 4.83 oz (137 g)

Miscellaneous

---

Package Contents:

• USB-C Dual Display Travel Dock
• 100W AC Power Adapter
• Power Cord
• Setup Poster
• Warranty Poster

Compatibility:

Compatibility across all USB-C laptops

Environmental Compliance:

Waste Electrical and Electronic Equipment Directive (WEEE)

Taiwan Restriction of Hazardous Substances (Taiwan RoHS)

Warranty

---

Limited Warranty: 3 Year
