Description:
General Information
Manufacturer: Axis Communications
Manufacturer Part Number: 02832001
Brand Name: AXIS
Product Model: M3086-V

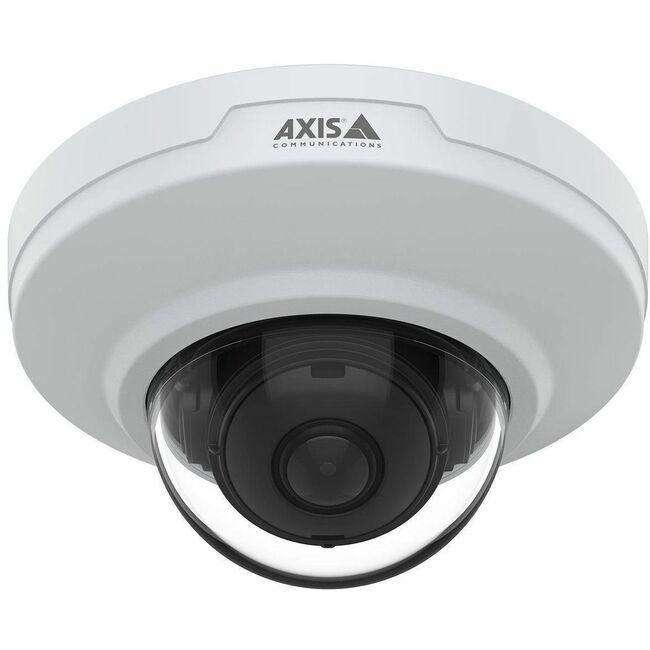

Product Name: Fixed 4 MP Mini Dome with Deep Learning Network Camera
Marketing Information:
This cost-efficient mini dome features Wide Dynamic Range (WDR) to ensure clarity even when there's both dark and light areas in the scene. With Lightfinder, it delivers sharp color images even in low light. A deep learning processing unit enables intelligent analytics based on deep learning on the edge. And AXIS Object Analytics offers detection and classification of different types of objects - all tailored to your specific needs. Furthermore, this compact, easy-toinstall, vandal-resistant camera offers a wide-angle view of 130° and comes factory focused so there's no manual focusing required.
- Great image quality in 4 MP
- Compact, discreet design
- WDR and Lightfinder
- Support for analytics with deep learning
- Built-in cybersecurity features
Product Type: Network Camera
Technical Information
HD Recording: Yes
Camera Iris: Fixed
Display & Graphics
Image Sensor Type: RGB CMOS
Image Sensor Size: 1/2.7"
Color Supported: Color
Field of View: Horizontal field of view: 130° Vertical field of view: 93°
Effective Camera Resolution: 4 Megapixel
Video
Video Formats: H.264M (MPEG-4 Part 10/AVC)H.264H (MPEG-4 Part 10/AVC)Motion JPEGH.264B (MPEG-4 Part 10/AVC)H.265 (MPEG-H Part 2/HEVC) Main ProfileH.264H.265ZipstreamMaximum Video Resolution: 2688 x 1512
Maximum Frame Rate: 30 fps
Lens
Lens Type: Fixed
Maximum Focal Length: 2.4 mm (0.09")
Lens Included: Yes
Maximum Aperture: f/2.1
Exposure
Shortest Shutter Speed: 1/38500 Second
Longest Shutter Speed: 1/5 Second
Network & Communication
Connectivity Technology: Wired
Remote Management: Yes
Ethernet Technology: Fast Ethernet
Protocols: ONVIFIPv4MQTTIPv6 USGv6ICMPv4/ICMPv6HTTPHTTPSTLSDiffServ (QoS)FTPSFTPCIFS/SMBSMTPmDNS (Bonjour)UPnPSNMPv1/v2c/v3 (MIB2)DNS/DNSv6DDNSNTPNTSRTSPRTPSRTP/RTSPSTCPUDPIGMPv1/v2/v3RTCPICMPDHCPv4/v6ARPSSHLLDPSIPCDPMQTT v3.1.1ZeroConfStorage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Maximum Power Consumption: 4.20 W
Power Source Type: PoE
Physical Characteristics
Color Family: White
Product Color: White
Form Factor: Mini Dome
Durability: Vandal ResistantWater ResistantImpact ResistantDust ResistantHeight: 2.20" (56 mm)
Diameter: 3.98" (101 mm)
Weight (Approximate): 5.29 oz (150 g)
Environmental Conditions
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 113°F (45°C)
Maximum Operating Humidity: 85%
Miscellaneous
Features: Wide Dynamic RangeDay/NightVideo Management SystemMotion DetectionMulti-view StreamAudio CompressionHTTPS EncryptionPrivacy MaskingMirrorWhite BalanceIndoor/Outdoor: Indoor
Impact Protection Rating: IK08
Ingress Protection Rating: IP42
0 items
):
$479.95
