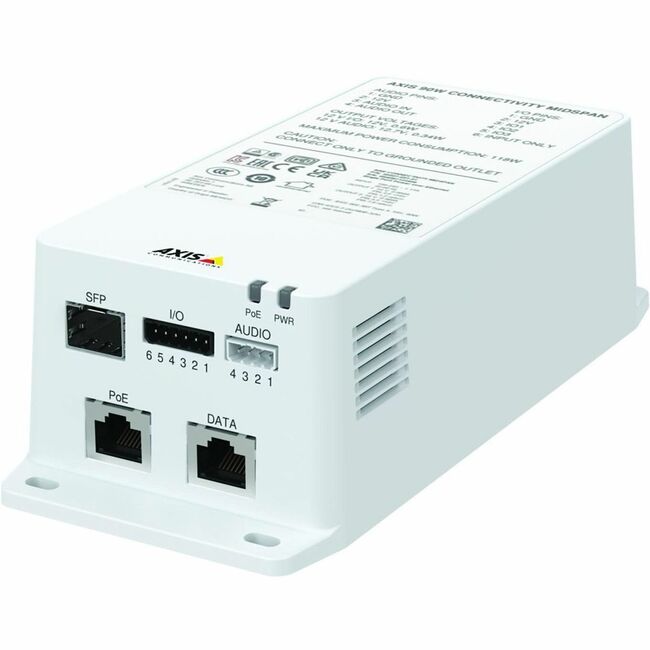

This midspan delivers a power output of 90 W. With portcast technology it enables both audio and I/O connectivity to your Axis PTZ cameras. Plus, with an SFP port, it supports both network and fiber installations.

Add connectivity

With AXIS TU8003 you can easily add two-way audio and I/O connectivity to your cameras. With portcast technology, this midspan uses the camera's IP address to provide seemingly camera-integrated audio and I/O connectivity. This enables audio and video in one stream over the network with no extra VMS license. Plus, it supports both digital and unbalanced microphones.

Add power possibilities

AXIS TU8003 deliveries up 90 W and can be used to power selected PTZ cameras. Featuring a built-in SFP slot, it is perfect for long-distance installations. And, with remote on/off functionality with I/O, it's possible to save power if needed. Furthermore, this 90 W midspan is compatible with IEEE 802.3bt, IEEE 802.3af (15 W), IEEE 802.3at and Axis High PoE.

• TU8003 90 W Connectivity Midspan
• Installation Guide
• Owner Authentication Key

• Axis C6110 Network Paging Console

Axis Network Speakers:

• C1110-E
• C1111-E

Axis PTZ Cameras:

• P5654-E Mk II
• P5655-E
• P5676-LE
• Q6074-E
• Q6075-E
• Q6078-E
• Q6135-LE
• Q6225-LE
• Q6318-LE

Axis Panoramic Cameras:

• P3735-PLE
• P3737-PLE
• P3738-PLE

• IEEE 802.3bt
• IEEE 802.3af
• IEEE 802.3at
• UK CA
• UL
• CCC
• cUL
• BIS
• CE
• KC
• VCCI
• RCM
• EN 55035
• EN 55032 Class A
• EN 50121-4
• EN 61000-3-2
• EN 61000-3-3
• EN 61000-6-1
• EN 61000-6-2
• IEC 62236-4
• CAN
• CSA C22.2 No. 62368-1 ed.2
• IEC/EN/UL 62368-1 ed.2,
• IEC/EN 60950-1
• IS 13252
• CB
• EAC
• UKCA
