IP paging adapter and scheduler for legacy communications systems

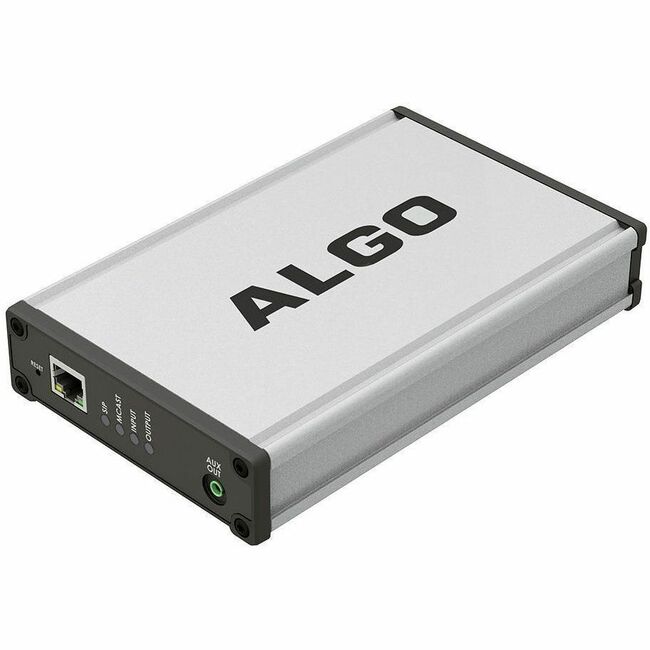

The 8305 Multi-Interface IP Paging Adapter is a versatile device designed to integrate with legacy paging and communication systems. Below is a detailed explanation of its connectivity options and technical capabilities:

Key Features and Interfaces

Telephone Port (Talk Battery Pair Interface):

• The Algo 8305 connects to paging systems that provide a "talk battery pair." This pair on the paging system is typically connected to an FXO port (loop start line) on a key system or PBX.
• The Algo 8305 emulates the behavior of a telephone line or telephone set going off-hook, allowing it to interact with the paging system.

8-Ohm Output for Self-Amplified Speakers:

• The 8305 includes an 8-ohm output, which can directly drive self-amplified speakers.

Balanced Line Out:

• The Algo 8305 provides a balanced line out connection, similar to the 8301, enabling integration with paging systems. The line out connection emulates a Page Port from a PBX or Key system.

• 8305 Multi-Interface IP Paging Adapter
• Snap Mounting Bracket

• Algo - 8300 IP Controller
• Algo - 1202 Call Button
• Algo - 1203 Call Switch
• Algo - 1204 Volume Control
