General Information

---

Manufacturer: IC INTRACOM
Manufacturer Part Number: 716185
Brand Name: Manhattan

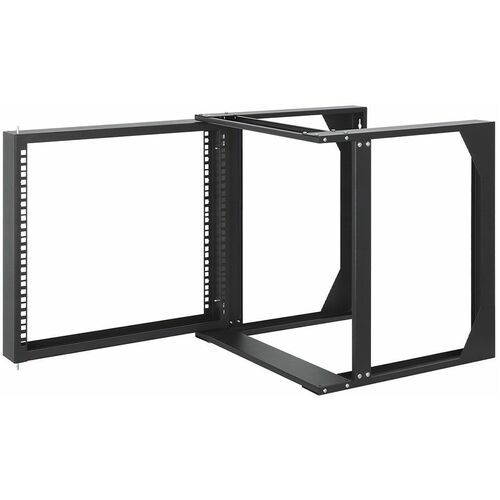

Product Name: 19" Wall Mount 2-Post Open Frame Network Rack, 9U
Marketing Information: Hinged open frame enclosure wall rack for network and server equipment

The 9U 19" Wall Mount 2-Post Open Frame Network Rack from Intellinet Network Solutions is a simple, cost-effective way for housing IT equipment in secure environments that don't require a lockable rack solution. It's a great fit in places where small rack solutions are often dispersed throughout an organization, like at a remote location or branch office. Its relatively compact design lets you place it out of the way on a desk or mount it on a wall instead of taking up floor space

Space-saving

The rack's wall-mountable option is perfect for saving valuable floor space while organizing network and server equipment from telecom, surveillance and audio/video applications where space is at a premium and a full-size floorstanding rack or cabinet cannot be used. The 400 mm (15.75 in.) usable depth of the rack allows for the mounting of shelves, switches, patch panels and more.

Easy access

The open frame design ensures maximum airflow to your equipment for smoother operation and a longer lifespan. It also allows your cabling to enter through all sides. A hinged front frame can be swung open for easy component exchange and maintenance. This construction makes it a smart choice as a test center rack for server and networking equipment.

High-quality steel

The strong and durable housing, constructed of high-quality SPCC cold-rolled steel with antistatic powder coating, carries a load capacity up to 30 kg (66 lbs.) with the frame closed. Its flat-packed shipping condition saves you space and freight costs. The enclosure also saves you the expense of 20 rack screws and cage nuts to securely mount your equipment because it ships with them included.
Product Type: Rack Mount Frame

Technical Information

---

Rack Type: Open Frame
Application/Usage:

Network Equipment

Server

Rack Post Quantity: 2

Physical Characteristics

---

Form Factor: Wall Mountable
Color Family: Black
Product Color: Black
Product Material:

SPCC

Cold-rolled Steel (CRS)

Powder Coated Steel

Maximum Weight Capacity: 66.14 lb (30000 g)
Static/Stationary Weight Capacity: 66.14 lb (30000 g)
Height: 19.41" (493 mm)
Width: 19.69" (500 mm)
Depth: 17.72" (450 mm)
Rack Height: 9U
Rack Width: 19" (482.60 mm)
Weight (Approximate): 17.86 lb (8100 g)

Miscellaneous

---

Package Contents:

• 19" Wall Mount 2-Post Open Frame Network Rack, 9U
• Cage Nut Set
• Assembly material (24 x M4 * 8 mm self-tapping screw, 8 x M5 pan-head screw)
• Assembly Instructions

Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
