Description:
General Information
Manufacturer: CyberPower Systems, Inc
Manufacturer Part Number: PR3000RTXL2UC
Brand Name: CyberPower
Product Series: New Smart App Sinewave UPS
Product Model: PR3000RTXL2UC

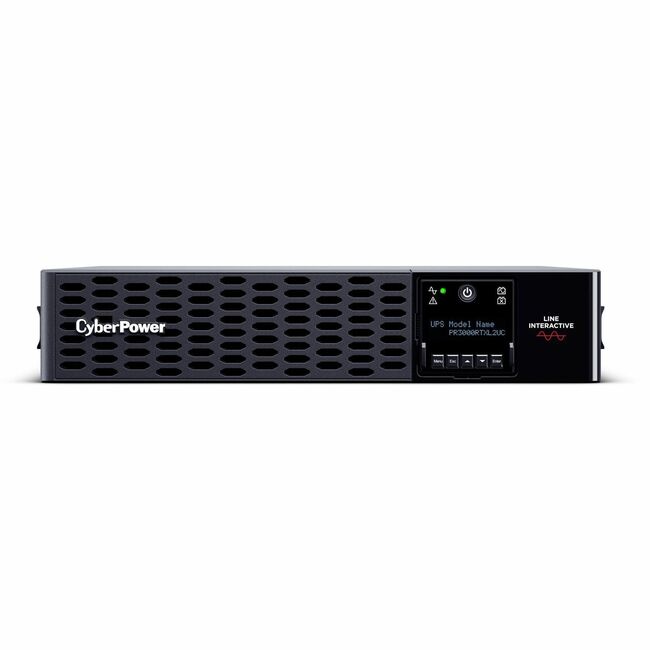

Product Name: New Smart App Sinewave UPS PR3000RTXL2UC 3000VA Tower/rack convertible UPS
Marketing Information:
The PR3000RTXL2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.
The Smart App Sinewave PR3000RTXL2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR3000RTXL2UC also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model accepts the BP48VP2U02 Extended Battery Module (EBM) for expanded runtime during power outages and the RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built-in cloud monitoring.
With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR3000RTXL2UC.
Product Type: Line-interactive UPS
Technical Information
AVR: Yes
Plug/Connector Type: NEMA L5-30P
Receptacle Type: NEMA 5-20RNEMA L5-30RReceptacle Detail: 8 x NEMA 5-20R1 x NEMA L5-30RNumber of Battery & Surge Outlets: 9
Number of Critical Load Outlets: 4
Overload Protection: Yes
Cord Length: 10 ft (3.05 m)
Transfer Time: 11 ms
EMI/RFI Noise Filter: Yes
Energy Saving: GreenPower UPS™ Bypass Technology
Application/Usage: ServerStorage DeviceVoIPNetwork DeviceTelecommunicationEquipmentCorporateSurge Suppression: Yes
Features: Audible Alarm
Power Description
Load Capacity (VA): 3 kVA
Load Capacity (Watt): 3 kW
Input Voltage: 120 V AC
Input Voltage Range: 75 V AC - 149 V AC100 V AC - 125 V ACOutput Voltage: 100 V AC110 V AC120 V AC125 V ACInput Frequency: 47 Hz63 HzOutput Frequency: 50 Hz60 HzWaveform Type: Sine Wave
Surge Energy Rating: 2430 J
Circuit Breaker: Yes
Output Power Factor: 1
Display & Graphics
Display: LCD
Management
Network Management: SNMP/HTTP Remote MonitoringRelay-MS CardDry ContactNetwork CardAlarm: Battery ModeLow BatteryOverloadOver-chargeFaultControls/Indicators
Status Indicators:
LCD Indicators:
- UPS Stats
- UPS Setup
- Control Management
- Testing Options
LED Indicators:
- Power On
- Line Mode
- Battery Mode
- Fault
Interfaces/Ports
Serial Port: Yes
USB: Yes
EPO Port: Yes
USB (HID Compliant) Port: Yes
Battery Information
Number of Batteries: 4
Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Battery Size: 12V
Battery Capacity: 9000 mAh
Backup/Run Time (Full Load): 1.70 Minute
Backup/Run Time (Half Load): 7 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 3 Hour
Replaceable Battery: Yes
Environmental Conditions
Maximum Operating Elevation: 9842.52 ft (3000000 mm)
Maximum Storage Elevation: 49209.32 ft (14999000 mm)
Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Operating Humidity: 0% - 95%
Storage Relative Humidity: 0% - 95%
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Sound Emission (A-Weighted): 57.5 dB(A)
Thermal Dissipation: 192.50 BTU/h
Physical Characteristics
Product Color: Black
Height: 3.40" (86.36 mm)
Width: 17.10" (434.34 mm)
Depth: 19.70" (500.38 mm)
Rack Height: 2U
Form Factor: Tower/Rack Convertible
Weight (Approximate): 75.40 lb (34200.86 g)
Miscellaneous
Energy Star: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
