Description:
General Information
Manufacturer: Schneider Electric SA
Manufacturer Part Number: SRTL3KRM1UWNC
Brand Name: APC
Product Line: Smart-UPS Ultra

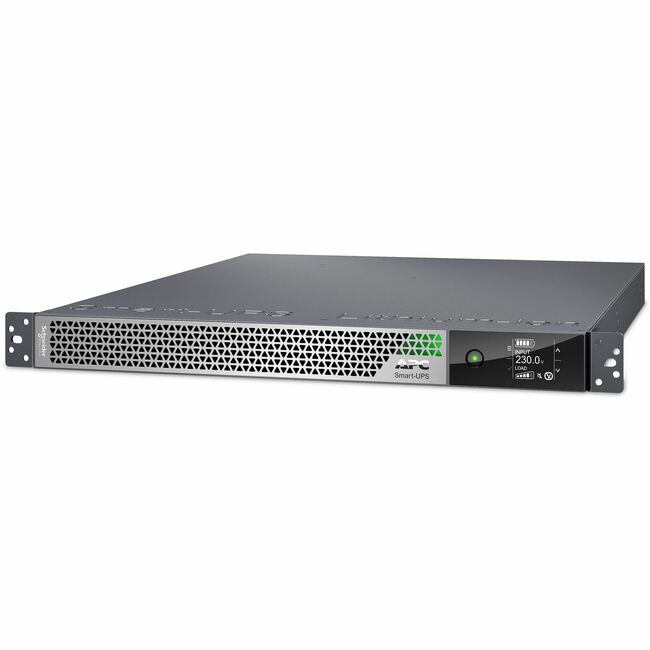

Product Name: Smart-UPS Ultra 3000VA Rack-mountable UPS
Marketing Information:
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 1U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with IEC Inlet, 3x IEC C13 and 2x IEC C19 outlets. This Smart-UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Serial Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery. The SRTL delivers clean power with zero transfer time for critical or sensitive devices. Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications.
Packaged Quantity: 1
Product Type: Dual Conversion Online UPS
Technical Information
Plug/Connector Type: British BS1363A
Receptacle Type: IEC 60320 C13
Receptacle Detail: 2 x IEC 60320 C193 x IEC 60320 C13Cord Length: 7.9 ft (2.40 m)
Phase: Single Phase
Power Description
Load Capacity (VA): 3 kVA
Load Capacity (Watt): 3 kW
Input Voltage: 208 V AC240 V ACInput Voltage Range: 160 V AC - 275 V AC208 V AC - 240 V ACOutput Voltage: 208 V AC240 V ACInput Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Sine Wave
Display & Graphics
Display: LCD
Management
Network Management: Network Card
Interfaces/Ports
USB: Yes
EPO Port: Yes
Battery Information
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Size: 50V
Battery Energy: 1209.6 kJ
Backup/Run Time (Full Load): 4.60 Minute
Backup/Run Time (Half Load): 10 Minute
Typical Battery Recharge Time: 1.50 Hour
Environmental Conditions
Maximum Operating Elevation: 10000 ft (3048000 mm)
Maximum Storage Elevation: 50000 ft (15240000 mm)
Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Storage Relative Humidity: 95%
Maximum Operating Temperature: 104°F (40°C)
Sound Emission: 55 dB
Physical Characteristics
Product Color: Silver Gray
Height: 1.69" (43 mm)
Width: 17.01" (432 mm)
Depth: 22.05" (560 mm)
Rack Height: 1U
Form Factor: Rack-mountable
Weight (Approximate): 35.05 lb (15898.41 g)
Miscellaneous
Package Contents: Smart-UPS Ultra 3000VA Rack-mountable UPSRJ45 Cable
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging: No
Warranty
Limited Warranty: 5 Year
