Description:
General Information
Manufacturer: Netgear, Inc
Manufacturer Part Number: GS752TPP-300NAS
Brand Name: Netgear
Product Model: GS752TPP

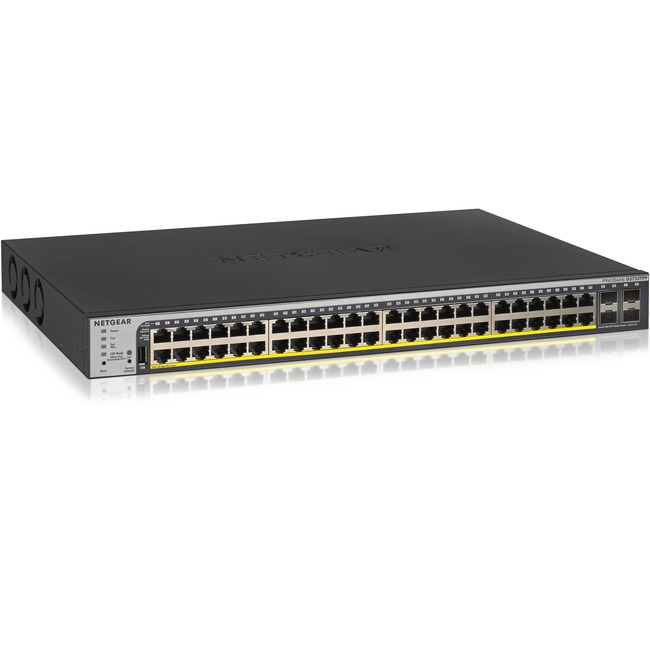

Product Name: Gigabit PoE+ Smart Switches with Remote/Cloud Management
Marketing Information:
All ports PoE+ with up to 760W PoE budget - Select your new network engine!
As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of providing a great choice of PoE port counts and power budgets that can adapt to your business' needs, whether in the hospitality, catering, education or retail domains.
The GS728TPv2, GS728TPPv2, GS752TPv2 and GS752TPP Gigabit Ethernet Switches with PoE+ and 4 SFP Ports join the NETGEAR Standalone Smart Managed Pro Switches family, adding full 24 and 48 port PoE+ support for deployment of modern high-power PoE devices. Cautious spender organizations can now deploy denser PoE+ devices connected to a cost-effective switch, with a reasonable PoE power budget of 190W over 24-port, or 380W over 48-port. Organizations who buy infrastructure for the long term and want future proofing for the unforeseeable can now select a switch with a PoE power budget of 380W over 24-port, or 760W over 48-port providing more headroom.
Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the GS728TP supports quiet rack mounting operation with a maximum of 27.08dB even at full PoE power with traffic on all ports and 25°C (77°F) ambient. Following the same measurements, the GS728TPP is rated at 33.42dB, the GS752TP at 36.94dB and the GS752TPP at 39.74dB.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 48
Uplink Port: Yes
Modular: Yes
Stack Port: No
Port/Expansion Slot Details: 48 x Gigabit Ethernet PoE+4 x Gigabit Ethernet Expansion SlotMedia & Performance
Media Type Supported: Twisted PairOptical FiberEthernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-TX1000Base-XI/O Expansions
Total Number of Expansion Slots: 4
Expansion Slot Type: SFP
Number of SFP Slots: 4
Network & Communication
Layer Supported: 2
Networking Standards: IEEE 802.1xIEEE 802.1pIEEE 802.3azIEEE 802.3atIEEE 802.11acIEEE 802.1QIEEE 802.3xIEEE 802.1DIEEE 802.1wIEEE 802.1sIEEE 802.1abIEEE 802.3IEEE 802.3uIEEE 802.3abIEEE 802.3afIEEE 802.3zManagement & Protocols
Manageable: Yes
Switch Management Type: Smart Managed
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 760 W
Input Voltage: 120 V AC230 V ACPower Source: Power SupplyACPoE+Power Consumption: 861 W
Physical Characteristics
Form Factor: Rack-mountable
Height: 1.70" (43.18 mm)
Width: 17.30" (439.42 mm)
Depth: 12.20" (309.88 mm)
Weight (Approximate): 11.08 lb (5025.80 g)
Miscellaneous
Package Contents:
- Gigabit PoE+ Smart Switches with Remote/Cloud Management
- AC Power Cord With C13 Connector (Localized To Region Of Sale)
- Brackets And Screws For Rack Mounting
- Rubber Footpads For Tabletop Installation
- Rubber Protection Caps, Which Are Already Installed In The Sfp Sockets
- Installation Guide
Warranty
Limited Warranty: Lifetime
