Description:
General Information
Manufacturer: ERICSSON
Manufacturer Part Number: BF01-03005GB-GN
Brand Name: CradlePoint
Product Series: E300
Product Model: E300-5GB

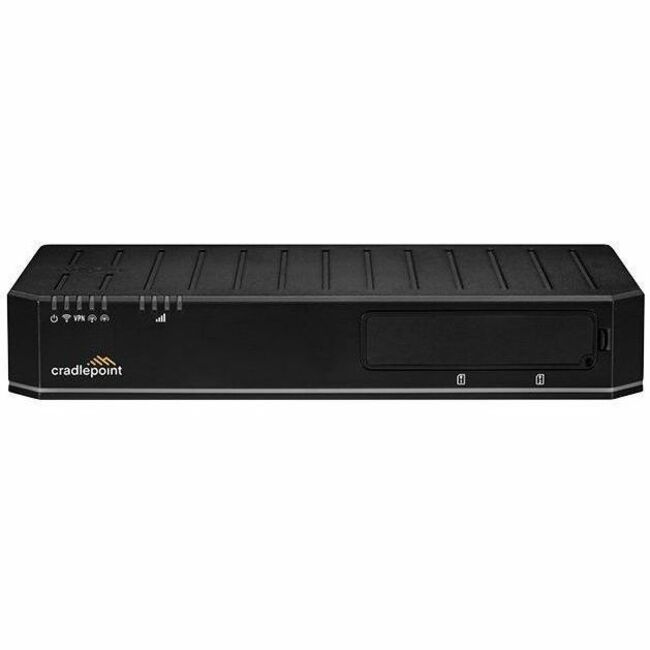

Product Name: E300-5GB Modem/Wireless Router
Marketing Information:
The Ericsson NetCloud Service for enterprise branch with an E300 router is ideally suited for providing 4G and 5G cellular connectivity, agile VPN security, and cellular optimized SD-WAN to pop-up temporary locations, branches, stores, and clinics. The all-in-one form factor includes full-featured routing, security, and Wi-Fi, making it easy to connect offices and sites to the internet and critical applications without the need for extra hardware or complicated configurations. And the embedded 5G or LTE modem means that connectivity is always available from day 1 without waiting for a wired connection.
Ideal for Wireless WAN
For organizations moving to a Wireless WAN, the E300 offers the ability to pair 5G or LTE with a wired link and use a cellular link as a failover connection, hybrid WAN or a primary connection. For an all-wireless WAN, the E300 offers 5G or LTE performance, which can support the throughput needs of a small- or medium-sized office with the ability to add a second cellular connection to increase available bandwidth and reliability.
5G, SD-WAN, and Security Integration
5G has emerged as an essential WAN infrastructure to offer agile and reliable connections.The E300 Enterprise Router with 5G cellular intelligence makes it easy to deploy 5G-enabled networks while optimizing both cellular and wired traffic to enhance application performance. Security postures can be reinforced, and attack surfaces minimized with zero trust privileged access, protected IP addresses, detailed security policies and consolidated authentication usage.
Additionally, the E300 router can serve as the user equipment router for private cellular networks that provide reliable local area network connectivity where wireless LAN fails to meet the network needs due to large areas or excessive congestion.
Product Type: Modem/Wireless Router
Technical Information
Wi-Fi Generation: Wi-Fi 6
Network Band: Dual Band
MU-MIMO Technology: Yes
Wireless Specifications
Broadband Transmission Technology: EthernetCellularWireless LAN Standard: IEEE 802.11k/v/ax
ISM Band: Yes
UNII Band: Yes
ISM Maximum Frequency: 2.40 GHz
UNII Maximum Frequency: 5 GHz
Cellular Generation: 5G
Cellular Network Supported: LTE 2100LTE 1900LTE 1800LTE 1700LTE 850LTE 2600LTE 900LTE 700LTE 800LTE 2300LTE 1500LTE 600LTE 2500LTE 3500LTE 3700LTE 5200LTE 2000Cellular Data Connectivity Technology: WCDMAUMTSHSPA+LTE Advanced ProLTE5G NRLTE Cat 7LTE Cat 18Total Wireless Transmission Speed: 221.75 MB/s
Interfaces/Ports
Total Number of Network Ports: 5
Number of Network (RJ-45) Ports: 4
USB: Yes
Number of Broadband (RJ-45) Ports: 1
I/O Expansions
Total Number of Expansion Slots: 2
Expansion Slot Type: SFP+Expansion SlotNetwork & Communication
Ethernet Technology: 10 Gigabit Ethernet
VPN Supported: Yes
Multi-SIM Supported: Yes
Number of SIM Card Supported: 2
SIM Size Supported: Mini
Physical Characteristics
Form Factor: DesktopWall MountableHeight: 1.70" (43.18 mm)
Width: 10.60" (269.24 mm)
Depth: 5.30" (134.62 mm)
Weight (Approximate): 1.90 lb (860 g)
Miscellaneous
Package Contents:
- E300-5GB Modem/Wireless Router
- Power Supply
- 4 x Cellular Paddle Antennas
- Wall Mount Screw Pack
- Rubber Feet for Desktop Mounting
- E300-5GB Cat 18 Cellular Antenna Alignment Tool
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)Restriction of Hazardous Substances (RoHS) Warranty
Limited Warranty: Lifetime
