Description:
General Information
Manufacturer: Shuttle, Inc
Manufacturer Part Number: XH610
Brand Name: Shuttle
Product Line: XPC slim
Product Model: XH610

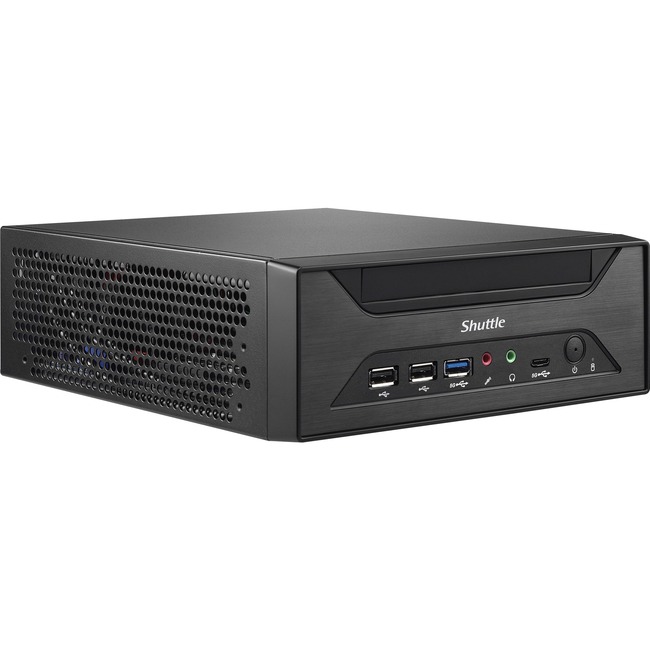

Product Name: XPC slim XH610 Barebone System
Marketing Information:
Combination of Connectivity and High Computing. Exceptional Reliability and Optimization to Your Business
Shuttle XPC slim 3-liter XH610/XH610V is equipped with Intel® H610 chipset that supports Intel® 12th LGA1700 65W processors and delivers 4K UHD video content. Up to three displays can be used simultaneously via one HDMI 2.0b, one DisplayPort, and one VGA. Feature an extra storage expansion that supports three 2.5" HDD/SSD storage drives or one 3.5" HDD (with an optional PHD4). Besides, the series includes 4 x USB 3.2 Gen1 (Include one Type-C), 4 x USB 2.0, Intel® 1G + Intel® 2.5G LAN, 2 x M.2, and 2 x RS232 to perform its rich I/O capabilities. In addition, another optional accessory PCM31 can be chosen to support a max of five RS232 ports to connect peripheral devices and deliver a robust performance that can drive highly interactive kiosks, vending machines, digital signage, and surveillance applications.
Product Type: Barebone System
Processor
Number of Processors Supported: 1
Processor Socket: Socket LGA-1700
Processor Supported: Core i3Core i5Core i7Core i9PentiumCeleronChipset
Chipset Manufacturer: Intel
Chipset Model: H610 Express
Memory
Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-3200/PC4-25600
Total Number of Memory Slots: 2
Controllers
Controller Type: Serial ATA/600
Network & Communication
Ethernet Technology: 2.5 Gigabit EthernetGigabit EthernetI/O Expansions
Number of Total Expansion Bays: 2
Interfaces/Ports
HDMI (Rear): Yes
Total Number of USB Ports: 9
Number of USB 3.2 Gen 1 Ports: 3
Number of Onboard USB 2.0 Ports: 1
USB Type-C: Yes
USB Type-C (Front): Yes
USB Type-C Detail: USB 3.2 Gen1 ports (Include Type C x 1)
Number of SATA Interfaces: 3
Number of VGA Ports: 1
Operating System
Operating System Supported: Windows 10 x64Windows 11 x64LinuxPower Description
Input Voltage: 120 V AC230 V ACMaximum Power Supply Wattage: 120 W
Physical Characteristics
Form Factor: Mini PC
Height: 2.83" (72 mm)
Width: 7.87" (200 mm)
Depth: 9.37" (238 mm)
Miscellaneous
Package Contents:
- XPC slim XH610 Barebone System
- AC Adapter
