General Information

---

Manufacturer: Schneider Electric SA
Manufacturer Part Number: SRTL5KRM2UT
Brand Name: APC by Schneider Electric

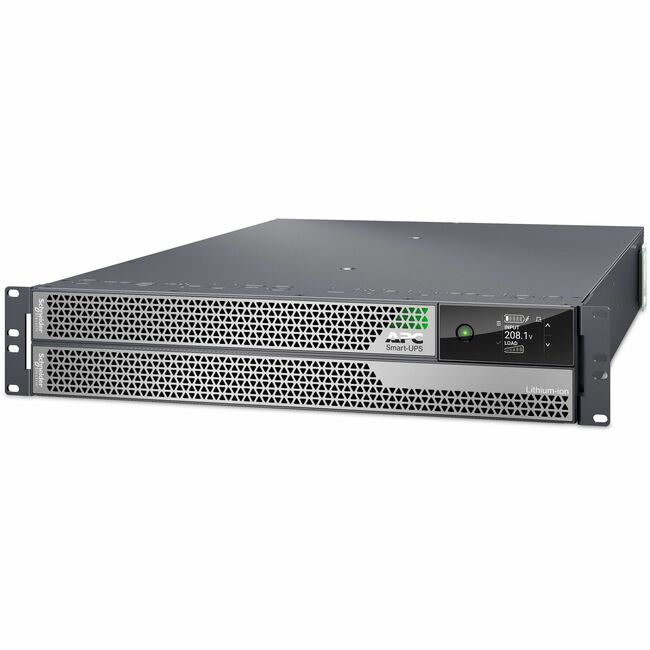

Product Name: Smart-UPS Ultra On-Line Lithium ion, 5KVA/5KW, 2U Rack/Tower, 208V
Marketing Information: This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with NEMA L6-30P input, 2x NEMA L6-20R and 2x NEMA L6-30R outlets. The Smart-UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Serial Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery. The SRTL delivers clean power with zero transfer time for critical or sensitive devices. Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications.

More from the Manufacturer

Packaged Quantity: 4 Pack
Product Type: Double Conversion Online UPS

Technical Information

---

Plug/Connector Type: NEMA L6-30P
Receptacle Type: NEMA L6-30P
Receptacle Detail:

2 x NEMA L6-20R

2 x NEMA L6-30R

Cord Length: 10 ft (3.05 m)

Power Description

---

Load Capacity (VA): 4.90 kVA
Load Capacity (Watt): 5 kW
Input Voltage: 208 V
Output Voltage: 208 V AC
Input Frequency: 70 Hz
Output Frequency: 60 Hz
Waveform Type: Sine Wave
Surge Energy Rating: 1260 J

Controls/Indicators

---

Status Indicators: Multi-function LCD Status and Control Console

Interfaces/Ports

---

EPO Port: Yes
USB (HID Compliant) Port: No

Battery Information

---

DC System Voltage: 180 V DC
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Energy: 2592 kJ
Battery Life: 10 Year
Typical Battery Recharge Time: 1.50 Hour

Environmental Conditions

---

Maximum Operating Elevation: 10000 ft (3048000 mm)
Storage Relative Humidity: 0% - 95%
Maximum Operating Temperature: 104°F (40°C)
Sound Emission (A-Weighted): 55 dB(A)
Thermal Dissipation: 1047 BTU/h

Physical Characteristics

---

Product Color: Silver Gray
Height: 3.39" (86 mm)
Width: 17.01" (432 mm)
Depth: 27.60" (701 mm)
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 64.37 lb (29197.74 g)

Miscellaneous

---

Package Contents:

• Smart-UPS Ultra On-Line Lithium ion, 5KVA/5KW, 2U Rack/Tower, 208V
• 1 x CD (Software and Documentation)
• Network Cable
• Rack Mounting Brackets

Energy Star: Yes
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty: 5 Year
Additional Warranty Information: 5 years
