Description:
General Information
Manufacturer: ASUS Computer International
Manufacturer Part Number: PRIME B550M-A AC
Brand Name: Asus
Product Line: Prime
Product Model: B550M-A AC

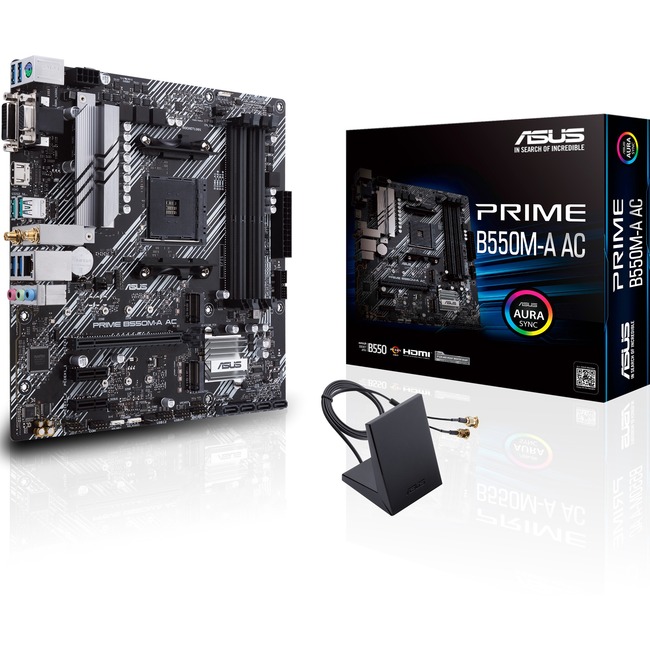

Product Name: Prime B550M-A AC Desktop Motherboard
Marketing Information:
AMD AM4 mATX motherboard with PCIe 4.0, dual M.2, WiFi, HDMI, D-Sub, DVI, SATA 6 Gbps, USB 3.2 Gen 2 ports, Aura Sync RGB lighting
- AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Comprehensive cooling: VRM heatsink, PCH heatsink, Fan Xpert 2+
- Ultrafast connectivity: Dual M.2, PCIe 4.0, 802.11ac Wi-Fi, USB 3.2 Gen 2 Type-A
- Aura Sync RGB: Synchronizable LED effects across a vast portfolio of compatible PC gear, including addressable RGB strips
PRIME ASUS Prime series is expertly engineered to unleash the full potential of 3rd Generation AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
Tune It Your Way
Comprehensive controls form the foundation of the ASUS Prime series. The Prime B550 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work - maximizing your productivity.
Product Type: Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: AMD
Chipset Model: B550
Total Processor Supported: 1
Processor Socket: Socket AM4
Processor Supported: Ryzen 3Ryzen 5Ryzen 7Ryzen 9Ryzen 5 ProRyzen 7 PRORyzen 9 PRORyzen 3 PROMemory
Number of Memory Slots: 4
Memory Form Factor: DIMMUDIMMMaximum Memory Supported: 128 GB
Memory Speed Supported: 2133 MHz2400 MHz2666 MHz2800 MHz3000 MHz3200 MHz3333 MHz3466 MHz3866 MHz3600 MHz3733 MHz4000 MHz4133 MHz4466 MHz4600 MHz4400 MHz4800 MHz4266 MHz4200 MHz3400 MHz4333 MHz4866 MHzMemory Technology: DDR4 SDRAM
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0101Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11a/b/g/n/ac
I/O Expansions
Total Number of Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 6
Number of USB 3.2 Ports: 6
VGA: Yes
HDMI: Yes
DVI: Yes
Number of Network (RJ-45) Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 6
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.2 Ports: 2
Onboard S/PDIF Header: Yes
Physical Characteristics
Form Factor: Micro ATX
Width: 9.60" (243.84 mm)
Depth: 9.60" (243.84 mm)
Miscellaneous
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
