General Information

---

Manufacturer: Extreme Networks, Inc
Manufacturer Part Number: AP460C-CAN
Brand Name: Extreme Networks
Product Line: ExtremeWireless
Product Model: AP460C

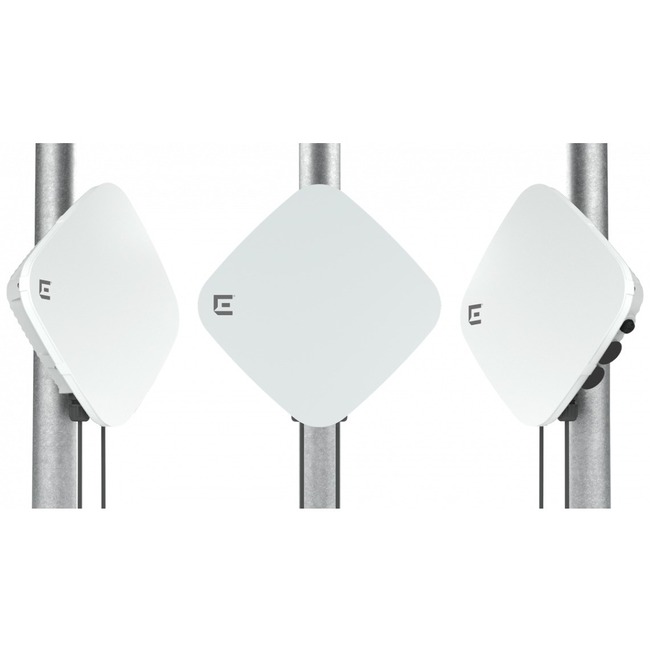

Product Name: ExtremeWireless AP460C Wireless Access Point
Marketing Information: Wi-Fi 6 (802.11ax) Tri-Radio Outdoor Access

The AP460C is a Tri Radio based on advanced radio technology delivers 802.11ax and is designed for harsh environments; from hurricane force winds to sub-zero temperature. The AP460C is IP67 outdoor rated and extends Extreme's Wi-Fi 6 coverage outdoors in a sleek form factor with three different antenna models: AP460C is based on internal Omni antenna, AP460S6C is a internal 60° Sector, and the AP460S12C is based on a 120° Sector for the most challenging outdoor deployments.

The AP460C is based on WiFi 6 Tri-Radios design delivers 802.11ax 2x2:2 data rates on 2.4 GHz and 4x4:4 data rates on 5 GHz concurrently on both the 2.4 GHz and 5 GHz radios and a 3rd radio for a dedicated full time dual banded sensor. The Tri-Radio APs continue the Extreme tradition of software-selectable-radios (SSRs) capable of dual 5 GHz connectivity for outdoor harsh environments.

With more users, more devices, more things, more applications and more threats straining the infrastructure, the AP460 was engineered to meet those challenges. The AP460 combines powerful 802.11ax Wi-Fi 6 technology, advanced security and ML/AI management capabilities together into an enterprise class solution that allows you to deploy high speed, highly secure Wi-Fi into the toughest environments.

Security

The AP460C delivers the highest level of security services, beginning with support for the latest Wi-Fi Alliance WPA3 security certifications. Additionally, supporting a stateful L2-L7 DPI firewall for contextbased access security, Private Pre-Shared Key (PPSK) and much more.

Product Type: Wireless Access Point

Technical Information

---

Wireless LAN Standard: 802.11ax
Bluetooth Standard: Bluetooth 5
Network Band: Dual Band
Frequency Band:

2.40 GHz

5 GHz

Total Number of Antennas: 7
Number of Internal Antennas: 7
Indoor/Outdoor: Outdoor
Wireless Transmission Speed: 5.25 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes
Data Encryption: Yes
Encryption Standard:

WPA3

WPA3-ENT

WPA3-Personal

WPA2-ENT

WPA2-PSK

WPA-PSK

WPA-ENT

Ingress Protection (IP) Rating: IP67

Interfaces/Ports

---

Ethernet Technology:

2.5 Gigabit Ethernet

Gigabit Ethernet

Number of Network (RJ-45) Ports: 2
PoE (RJ-45) Port: Yes
PoE PD Port: Yes
USB: Yes

Power Description

---

Power Consumption: 15.23 W

Physical Characteristics

---

Form Factor:

Pole-mountable

T-bar Mount

Antenna Form Factor: Internal
Height: 9.40" (238.76 mm)
Width: 9.40" (238.76 mm)
Depth: 2.90" (73.66 mm)
Weight (Approximate): 3.97 lb (1800 g)
