General Information

---

Manufacturer: Schneider Electric SA
Manufacturer Part Number: SCL500RM1UC
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS

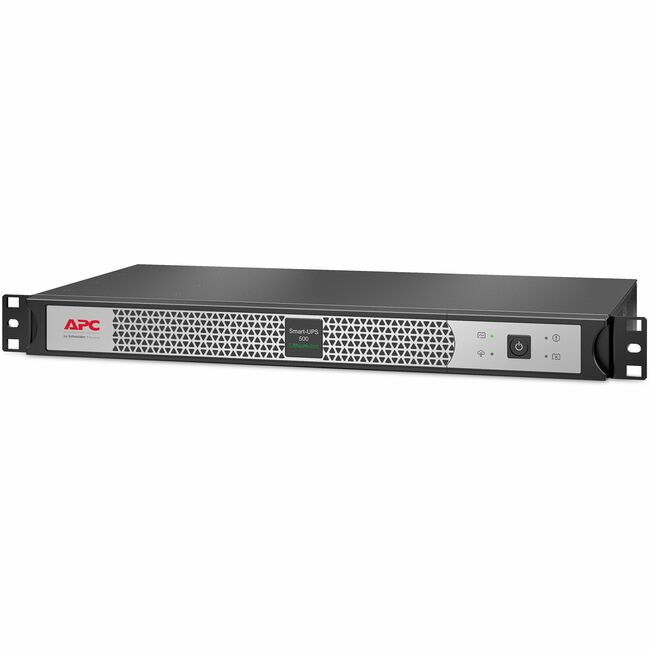

Product Name: Smart-UPS 500VA Rack/Floor Mountable UPS
Marketing Information: This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA line interactive 1U short depth rackmount UPS with Lithium-ion battery provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4 NEMA5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SCL UPS has a 5-year warranty on the UPS and Lithium-ion battery.

More from the Manufacturer

Packaged Quantity: 1 Each
Product Type: Line-interactive UPS

Technical Information

---

AVR: Yes
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15P
Receptacle Detail: 4 x NEMA 5-15R
Number of Battery & Surge Outlets: 4
Dataline Protection: RJ-45
Cord Length: 6 ft (1.83 m)
Transfer Time: 10 ms
Application/Usage:

Network

Server

POS Terminal

Router

Switch

Network Hub

Equipment

Business

Storage

Security System

Communication System

Voice/Data Network

Power Description

---

Load Capacity (VA): 500 VA
Load Capacity (Watt): 400 W
Input Voltage: 120 V
Input Voltage Range: 92 V AC - 139 V AC
Output Voltage: 120 V AC
Input Frequency: 63 Hz
Output Frequency: 60 Hz
Waveform Type: Sine Wave
Surge Energy Rating: 680 J

Management

---

Network Management: SmartConnect
Alarm:

On Battery

Low Battery

Configurable Delay

Controls/Indicators

---

Status Indicators: LED Display

Interfaces/Ports

---

Serial Port: Yes
Network (RJ-45): Yes
EPO Port: Yes
USB (HID Compliant) Port: Yes

Battery Information

---

Battery Characteristics: Valve-regulated
Battery Chemistry: Lithium Ion (Li-Ion)
Backup/Run Time (Full Load): 2.70 Minute
Backup/Run Time (Half Load): 6.30 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 3 Hour
Replaceable Battery: Yes

Environmental Conditions

---

Maximum Operating Elevation: 6561 ft (1999792.80 mm)
Maximum Storage Elevation: 49212 ft (14999817.60 mm)
Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Operating Humidity: 10% - 90%
Storage Relative Humidity: 10% - 90%
Maximum Operating Temperature: 104°F (40°C)
Sound Emission (A-Weighted): 45 dB(A)

Physical Characteristics

---

Product Color:

Black

Silver

Height: 1.73" (44 mm)
Width: 17.01" (432 mm)
Depth: 9.13" (232 mm)
Rack Height: 1U
Form Factor: Rack-mountable
Weight (Approximate): 9.22 lb (4182.12 g)

Miscellaneous

---

Package Contents:

Smart-UPS 500VA Rack/Floor Mountable UPS

CD with software

Documentation CD

Installation guide

Rack mounting support rails

USB cable

Software Included: Powerchute Serial Edition
Energy Star: Yes
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty: 5 Year
Additional Warranty Information: 5 year repair or replace
