Description:
General Information
Manufacturer: ATEN Technology, Inc
Manufacturer Part Number: CE610A
Brand Name: ATEN
Product Model: CE610A

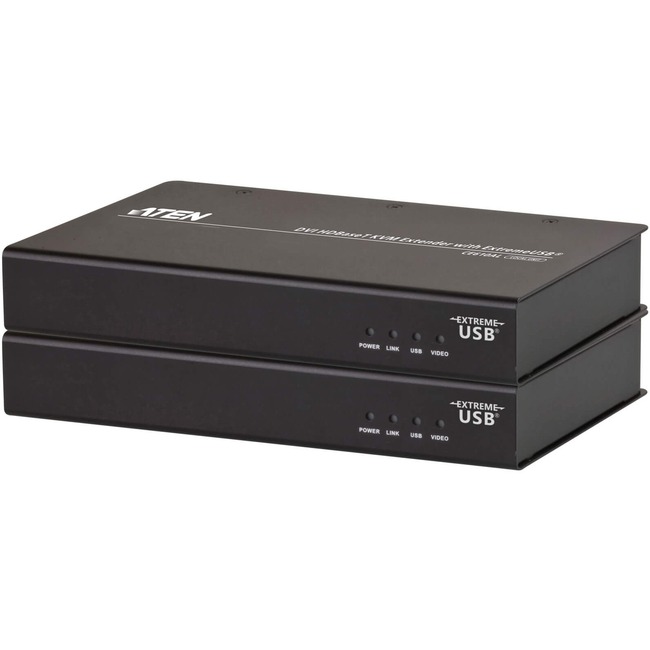

Product Name: DVI HDBaseT KVM Extender with ExtremeUSB
Marketing Information:
The CE610A USB DVI KVM Extender is a DVI and USB Extender that supports ExtremeUSB ® and HDBaseT technology. The CE610A can extend DVI and USB 2.0 signals up to 300 ft (100 m) from the source using a single Cat 5e/6 cable.
The CE610A is equipped with USB connectors which allow you to extend any USB device between the units. The USB functionality provides not only peripheral sharing but also the support for touch panel control and fi le transfer. The CE610A is ideal for situations where touch panel is required, such as transportation centers, medical facilities, shopping malls, industrial kiosks, and when synchronizing for files / folders between portable and desktop computers are required.
Product Type: KVM Console/Extender
Technical Information
Connectivity Technology: Wired
Number of Computers Supported: 1
Number of Remote Users Supported: 1
Maximum Operating Distance: 328.08 ft (100000 mm)
Video
Graphic Mode: WUXGA
Maximum Video Resolution: 1920 x 1200
Interfaces/Ports
Network (RJ-45): Yes
USB: Yes
DVI: Yes
Number of Network (RJ-45) Ports: 2
Number of USB Ports: 6
Number of DVI Ports: 2
Power Description
Input Voltage: 5 V DC
Power Consumption: 15 W
Physical Characteristics
Form Factor: Rack-mountable
Transmitter Height: 1.13" (28.70 mm)
Transmitter Width: 4.64" (117.86 mm)
Transmitter Depth: 7.17" (182.12 mm)
Receiver Height: 1.13" (28.70 mm)
Receiver Width: 4.64" (117.86 mm)
Receiver Depth: 7.17" (182.12 mm)
Transmitter Weight (Approximate): 1.37 lb (620 g)
Receiver Weight (Approximate): 1.37 lb (620 g)
Miscellaneous
Package Contents:
- 1 x CE610AL DVI HDBaseT KVM Extender with ExtremeUSB (Local Unit)
- 1 x CE610AR DVI HDBaseT KVM Extender with ExtremeUSB (Remote Unit)
- 1 x Custom DVI Cable (DVI Dual Link; 1.8m/6ft)
- 1 x USB Cable (1.8m/6ft)
- 2 x Power Adapters
- 1 x Mounting Kit
- 1 x User Instructions
Platform Supported:
PCMacLinuxEnvironmentally Friendly: Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)Waste Electrical and Electronic Equipment Directive (WEEE)Country of Origin: Taiwan
