Description:
General Information
Manufacturer: Kramer Electronics LTD
Manufacturer Part Number: VM-400HDCPXL
Brand Name: Kramer
Product Line: MegaTOOLS
Product Model: VM-400HDCPXL

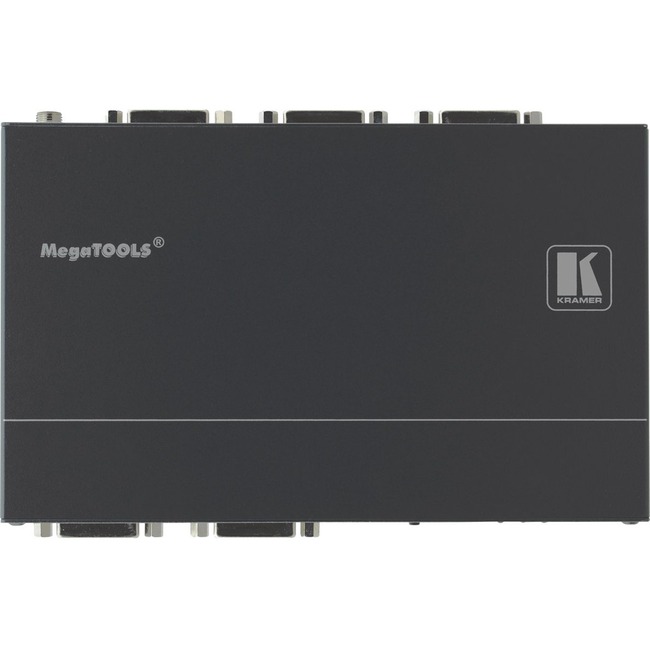

Product Name: 1:4 4K60 4:2:0 DVI DA
Marketing Information:
The VM-400HDCPxl is a 4K@60Hz (4:2:0) 1:4 distribution amplifier for HDMI signals via single-link DVI. It takes one DVI input, equalizes and reclocks the signal and distributes it to four identical outputs. With the appropriate adapter, it distributes signals having resolutions up to 4K@60Hz (4:2:0), WUXGA and 1080p.
- Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
- Max. Resolution - 4K@60 (4:2:0), WUXGA and 1080p.
- HDCP Compliance.
- Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal integrity to travel longer distances.
- I-EDIDPro™ Kramer Intelligent EDID Processing™ - An intelligent EDID handling and processing algorithm that ensures Plug and Play operation for HDMI systems.
- Default EDID - For fast and efficient connection of the unit.
- 3D Pass-Through.
- USB Port - For firmware upgrading.
Product Type: Audio/Video Distribution Amplifier
Video
Maximum Video Resolution: 4096 x 2160
Interfaces/Ports
DVI In: Yes
DVI Out: Yes
USB: Yes
Number of DVI Inputs: 1
Number of DVI Outputs: 4
Power Description
Input Voltage: 5 V DC
Physical Characteristics
Height: 1" (25.40 mm)
Width: 7.38" (187.45 mm)
Depth: 4.53" (115.06 mm)
Weight (Approximate): 1.10 lb (500 g)
Miscellaneous
Package Contents:
- 1:4 4K60 4:2:0 DVI DA
- Power Supply
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 7 Year
