General Information

---

Manufacturer: Schneider Electric SA
Manufacturer Part Number: SRT3000RMXLW-IEC
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS On-Line

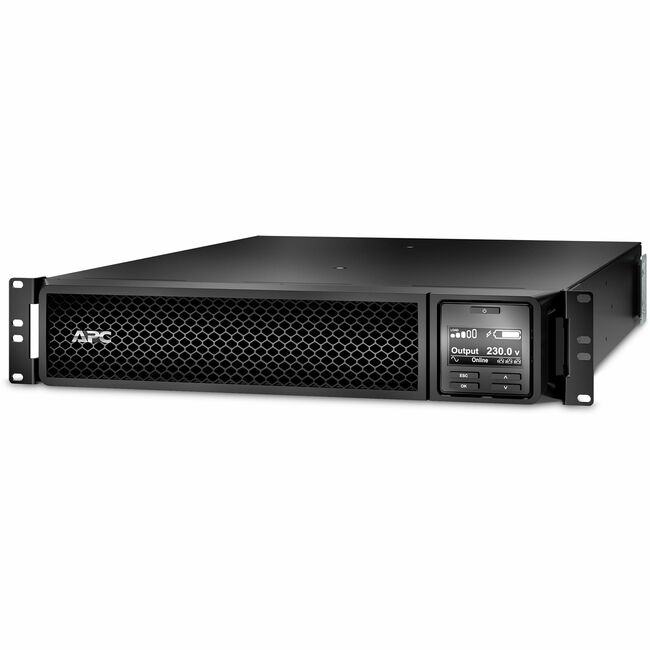

Product Name: Smart-UPS SRT 3000VA RM 208/230V IEC
Marketing Information: This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 6x IEC 60320 C13, 2x IEC 60320 C19 outlets, and 2x IEC jumpers. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
Product Type: Double Conversion Online UPS

Technical Information

---

Plug/Connector Type: British BS1363A
Receptacle Type:

IEC 60320 C20

Schuko CEE 7/EU1-16P

Receptacle Detail:

2 x IEC 60320 C19

2 x IEC Jumper

6 x IEC 60320 C13

Number of Battery & Surge Outlets: 10
Cord Length: 8 ft (2.44 m)

Power Description

---

Load Capacity (VA): 3 kVA
Load Capacity (Watt): 2.70 kW
Input Voltage:

208 V

230 V

Output Voltage:

208 V AC

230 V AC

Waveform Type: Sine Wave
Surge Energy Rating: 340 J

Battery Information

---

Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 4 Minute
Typical Battery Recharge Time: 3 Hour

Physical Characteristics

---

Product Color: Black
Height: 3.35" (85 mm)
Width: 17.01" (432 mm)
Depth: 25" (635 mm)
Rack Height: 2U
Form Factor: Rack-mountable
Weight (Approximate): 69 lb (31297.87 g)

Miscellaneous

---

Package Contents:

Smart-UPS SRT 3000VA RM 208/230V IEC

CD with software

Documentation CD

Installation guide

Rack mounting brackets

Rack mounting support rails

USB cable

Warranty card

Software Included: Powerchute Serial Edition
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty: 3 Year
Additional Warranty Information: 3 years repair or replace (excluding battery) and 2 years for battery
