Description:
General Information
Manufacturer: Schneider Electric SA
Manufacturer Part Number: AP8659NA3
Brand Name: APC by Schneider Electric

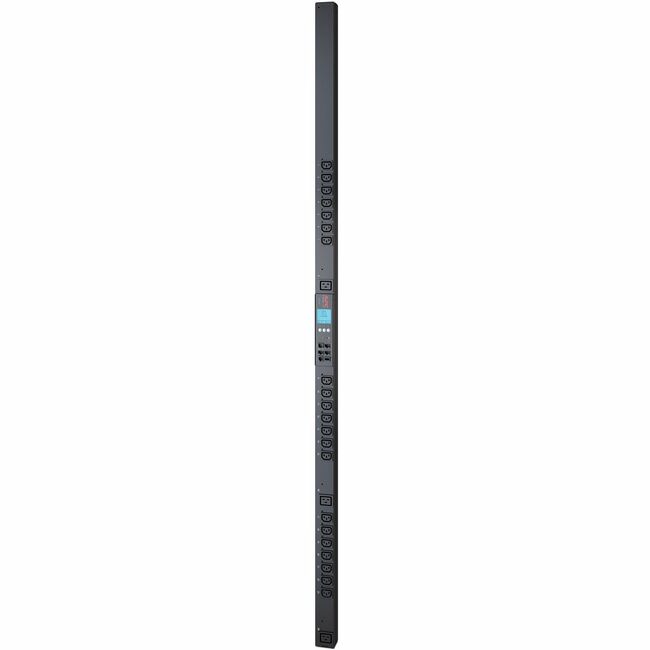

Product Name: Metered-by-Outlet Rack PDU
Marketing Information:
APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles
Product Type: PDU
Technical Information
PDU Type: Metered-by-Outlet
Plug/Connector Type: NEMA L6-20P
Receptacle Type: IEC 60320 C19IEC 60320 C13Receptacle Detail: 21 x IEC 60320 C133 x IEC 60320 C19Power Description
Input Voltage: 200 V208 V230 VInput Voltage Range: 200 V AC - 230 V AC
Output Voltage: 208 V AC
Management
Management:
Protocols:
Physical Characteristics
Mounting Orientation: Vertical
Mount Type: Rack-mountable
Form Factor: Tower
Placement: Side
Rack Height: 0U
Cord Length: 9.8 ft (3 m)
Height: 72.01" (1829 mm)
Width: 2.20" (56 mm)
Depth: 2.01" (51 mm)
Weight (Approximate): 14.93 lb (6772.13 g)
Miscellaneous
Package Contents: Metered-by-Outlet Rack PDU CAN port terminatorInstallation guideLocking input power cordRack mounting bracketsSafety guideSerial configuration cable
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 2 Year
Additional Warranty Information: 2 years repair or replace
